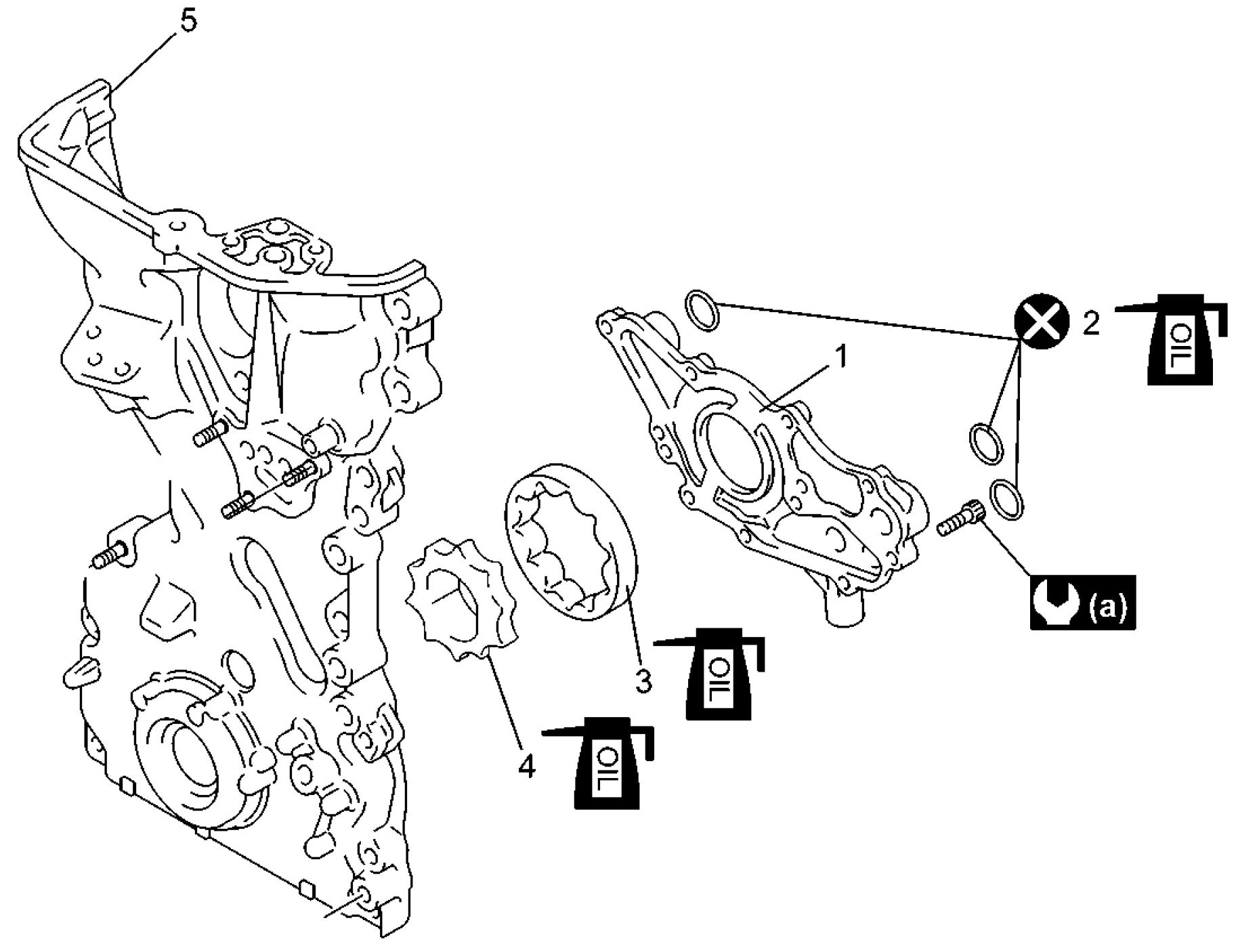

Oil Pump Assembly Components
Precautions: General safety (00)
| 1. | Rotor plate |
 4. |
Inner rotor : Apply engine oil. |
 : |
Do not reuse. |
| 2. | O-ring | 5. | Timing chain cover | ||
|
3. |
Outer rotor : Apply engine oil. |
 : |
11 N·m (1.1 kgf-m 8.5 lbf-ft) |
