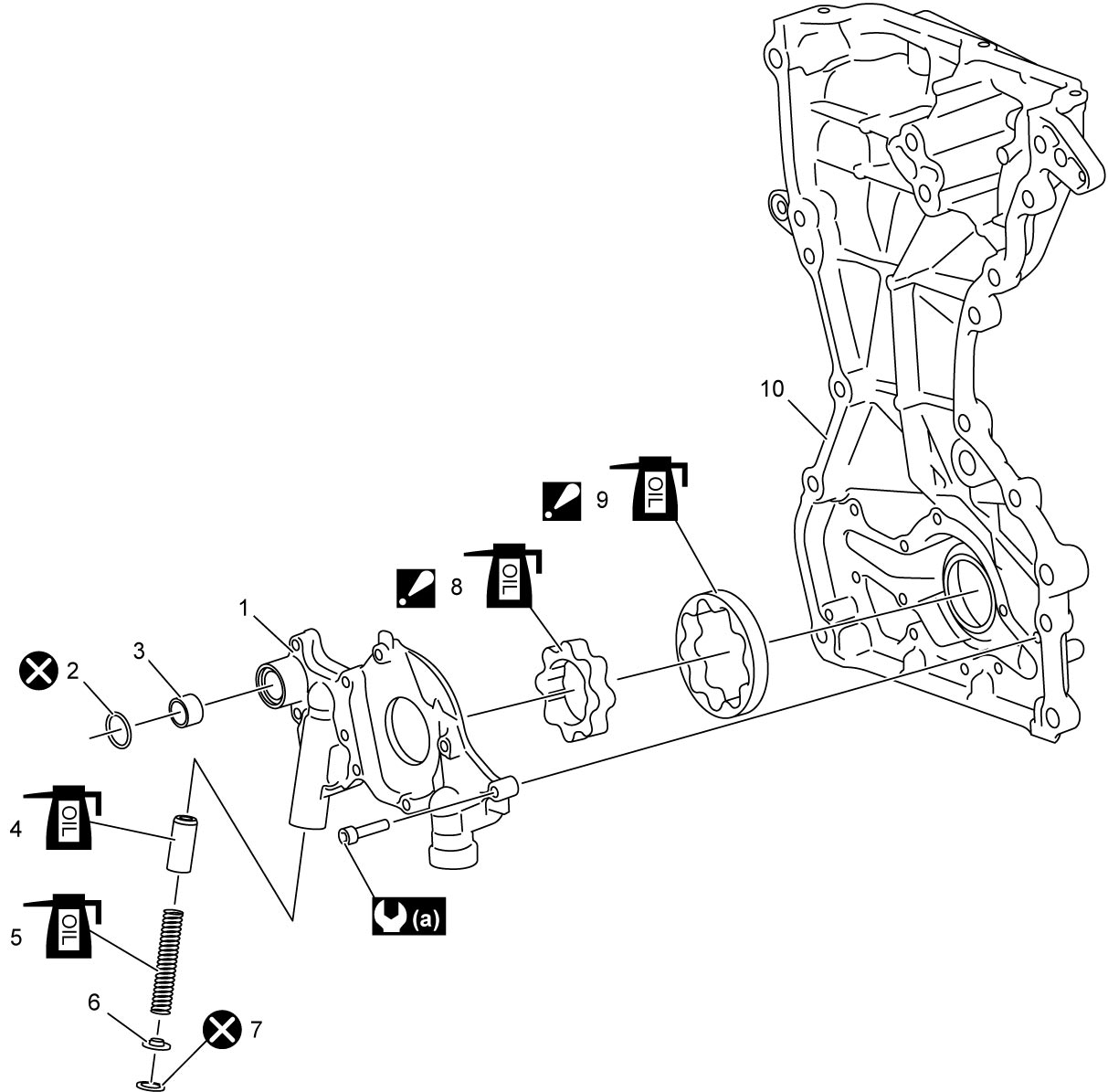

Oil Pump Assembly Components
Precautions: General safety (00)
| 1. | Rotor plate |
 5. |
Relief valve spring : Apply engine oil. |
 9. |
Outer rotor : Apply engine oil. : For installation, refer to Oil Pump Assembly Disassembly and Reassembly:K14C. |
| 2. | Oil pump O-ring | 6. | Relief valve retainer | 10. | Timing chain cover |
| 3. | Oil gallery pipe | 7. | Circlip |
 : |
11 N·m (1.1 kgf-m 8.5 lbf-ft) |
|
4. |
Relief valve : Apply engine oil. |
8. |
Inner rotor : Apply engine oil. : For installation, refer to Oil Pump Assembly Disassembly and Reassembly:K14C. |
 : |
Do not reuse. |
