Oil Pressure Switch-1 On-Vehicle Inspection
Precautions: General safety (00)
1)Disconnect oil pressure switch-1 connector.

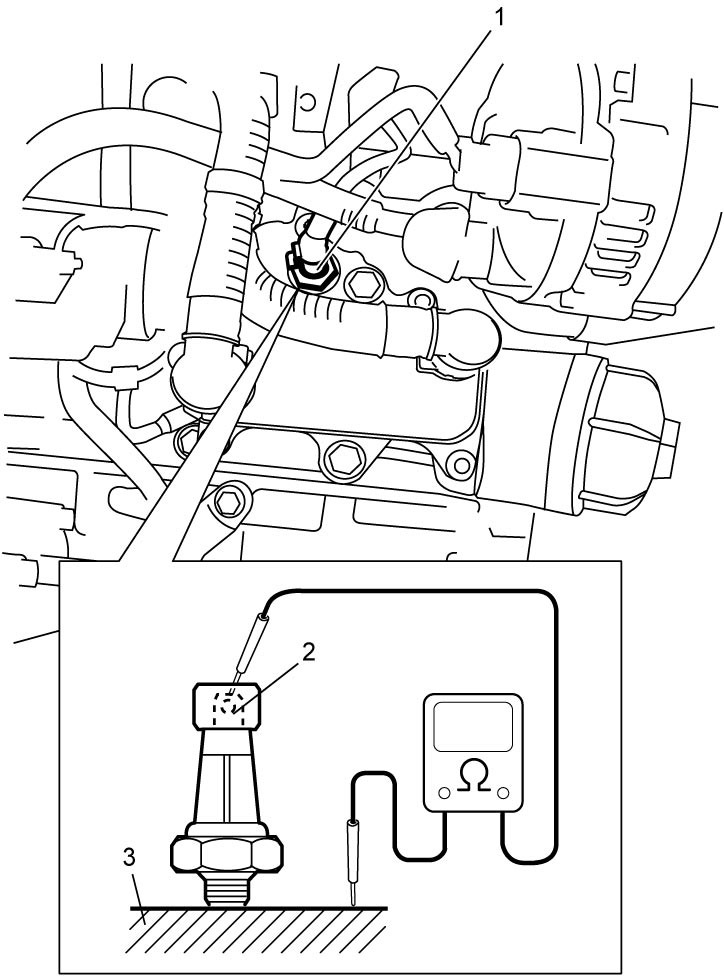

2)Check for continuity between oil pressure switch-1 terminal (2) and cylinder head (3) as shown.
If check result is not as specified, replace oil pressure switch-1 (1).
If check result is not as specified, replace oil pressure switch-1 (1).
Oil pressure switch-1 specification
During engine running: No continuity
At engine stop: Continuity exists
