Suzuki Vitara (LY) 2016-2017 · Service Manual M16A · Schematic and Routing Diagram

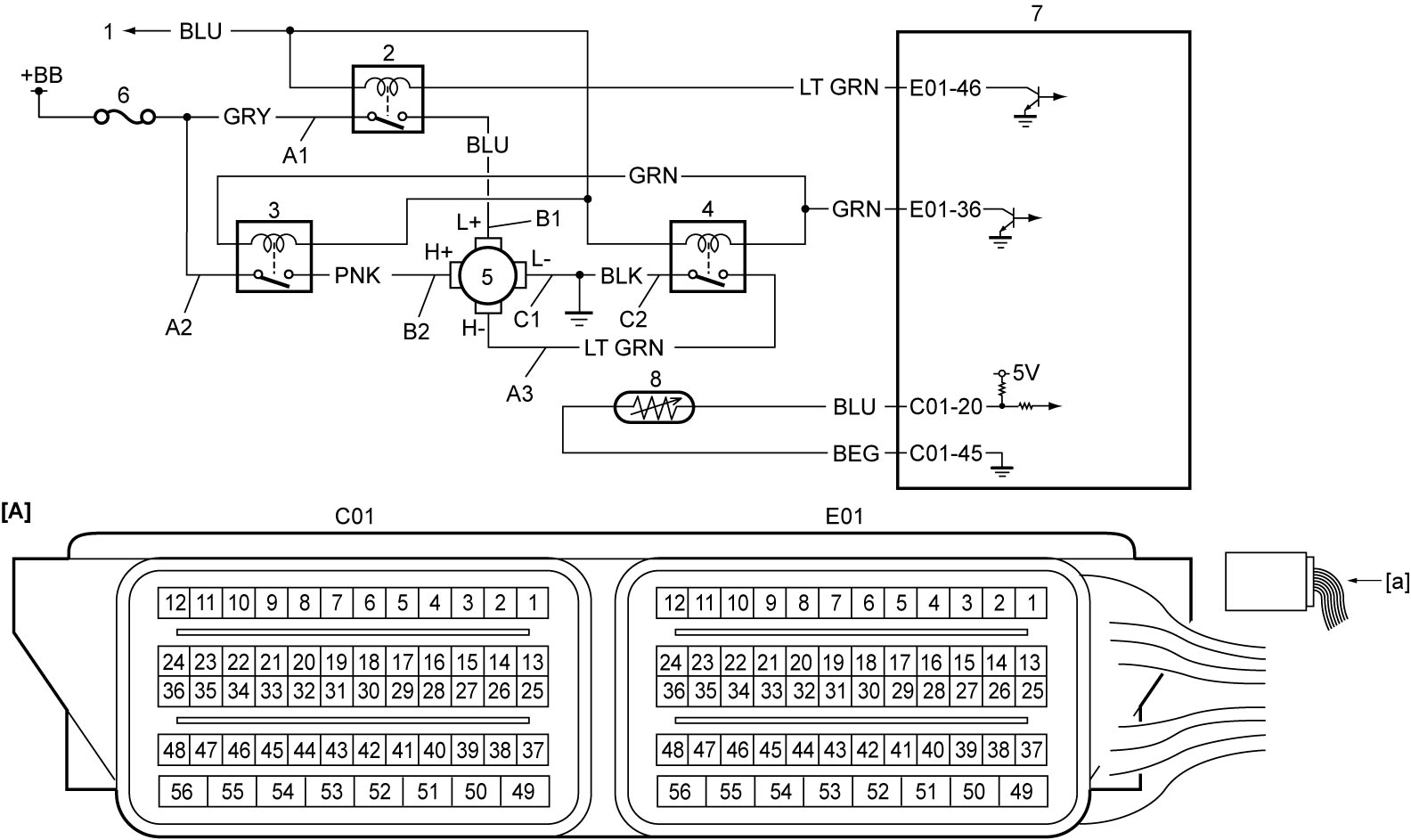

Radiator Cooling Fan Control System Circuit Diagram

Precautions: Precautions for Cooling System · General safety (00)

[A]: ECM connector (View: [a]) C1: Radiator cooling fan motor ground circuit 5. Radiator cooling fan motor
A1: Radiator cooling fan relay No.1 power supply circuit (switch side) C2: Radiator cooling fan relay No.3 ground circuit 6. “RDTR” fuse
A2: Radiator cooling fan relay No.2 power supply circuit (switch side) 1. To main relay 7. ECM
A3: Radiator cooling fan relay No.3 power supply circuit (switch side) 2. Radiator cooling fan relay No.1 8. ECT sensor
B1: Radiator cooling fan motor drive circuit (low speed) 3. Radiator cooling fan relay No.2
B2: Radiator cooling fan motor drive circuit (high speed) 4. Radiator cooling fan relay No.3
