Radiator Cooling Fan Disassembly and Reassembly
Precautions: Precautions for Cooling System · General safety (00)
Disassembly

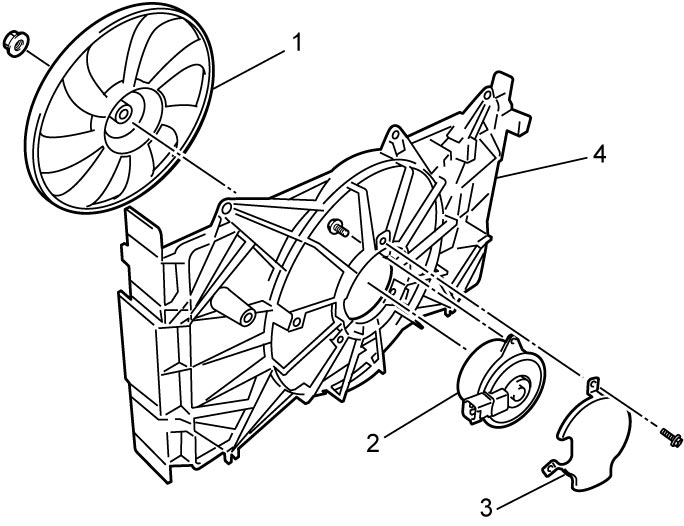

1)Remove radiator cooling fan (1) from radiator cooling fan motor (2).
2)Remove radiator cooling fan motor cover (3) from radiator cooling fan shroud (4).
3)Remove radiator cooling fan motor from radiator cooling fan shroud.
Reassembly
Reverse disassembly procedure noting the following point.

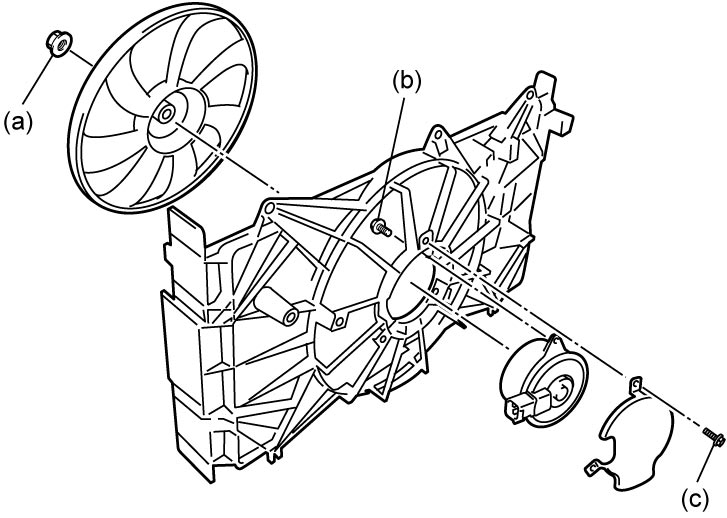

•Tighten radiator cooling fan nut and radiator cooling fan motor bolts to specified torque.
Radiator cooling fan motor bolt (b): 3.9 N·m (0.40 kgf-m, 3.0 lbf-ft)
Radiator cooling fan motor cover bolt (c): 2.6 N·m (0.27 kgf-m, 2.0 lbf-ft)
Tightening torque
Radiator cooling fan nut (a): 6.3 N·m (0.64 kgf-m, 5.0 lbf-ft)Radiator cooling fan motor bolt (b): 3.9 N·m (0.40 kgf-m, 3.0 lbf-ft)
Radiator cooling fan motor cover bolt (c): 2.6 N·m (0.27 kgf-m, 2.0 lbf-ft)
