Coolant Circulation

Precautions: Precautions for Cooling System · General safety (00)

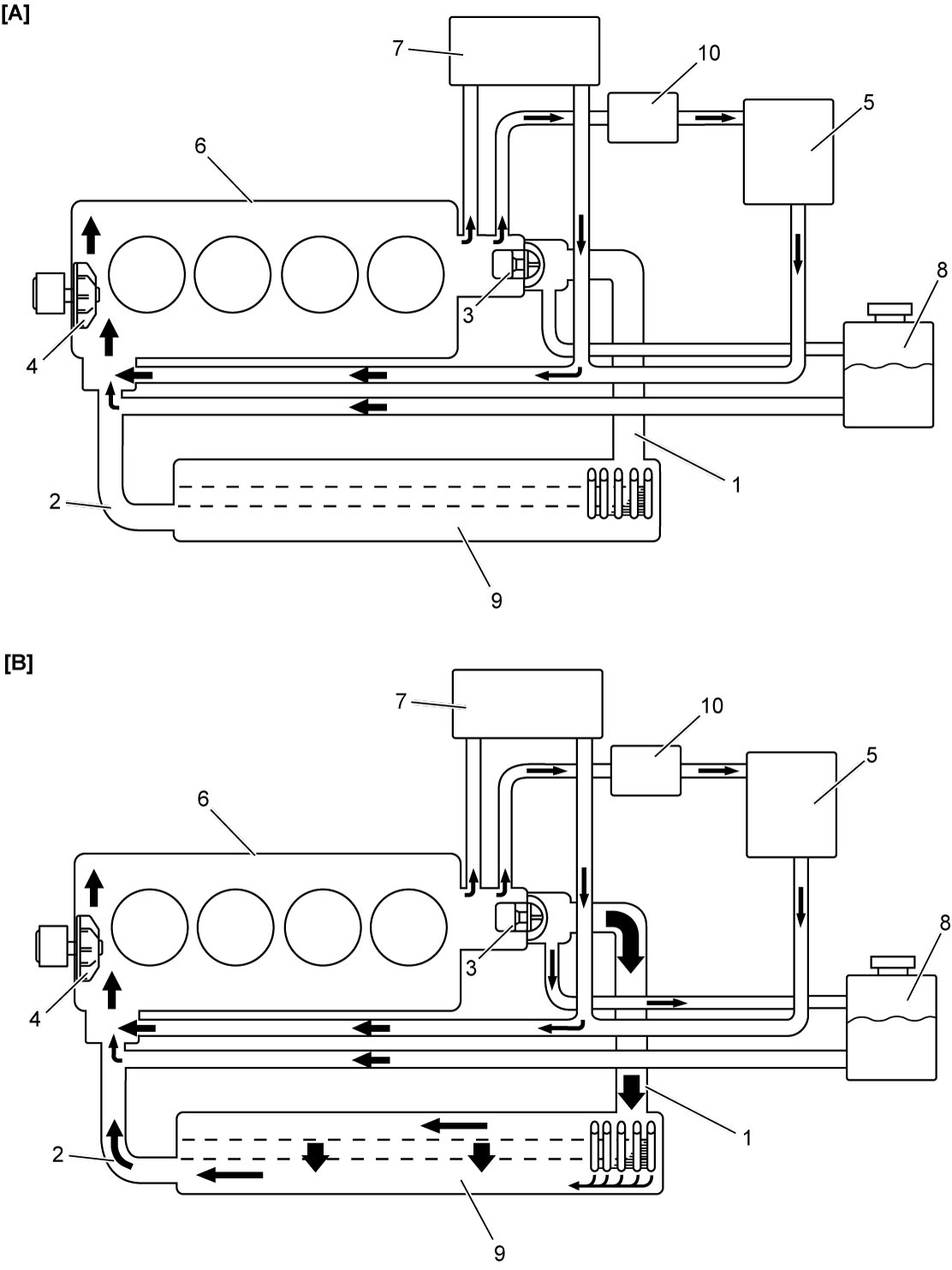

[A]:	When thermostat is close	3.	Thermostat	7.	Heater core
[B]:	When thermostat is open	4.	Water pump	8.	Degassing tank
1.	Radiator inlet hose	5.	Heat exchanger No.1	9.	Radiator
2.	Radiator outlet hose	6.	Engine	10.	EGR cooler
