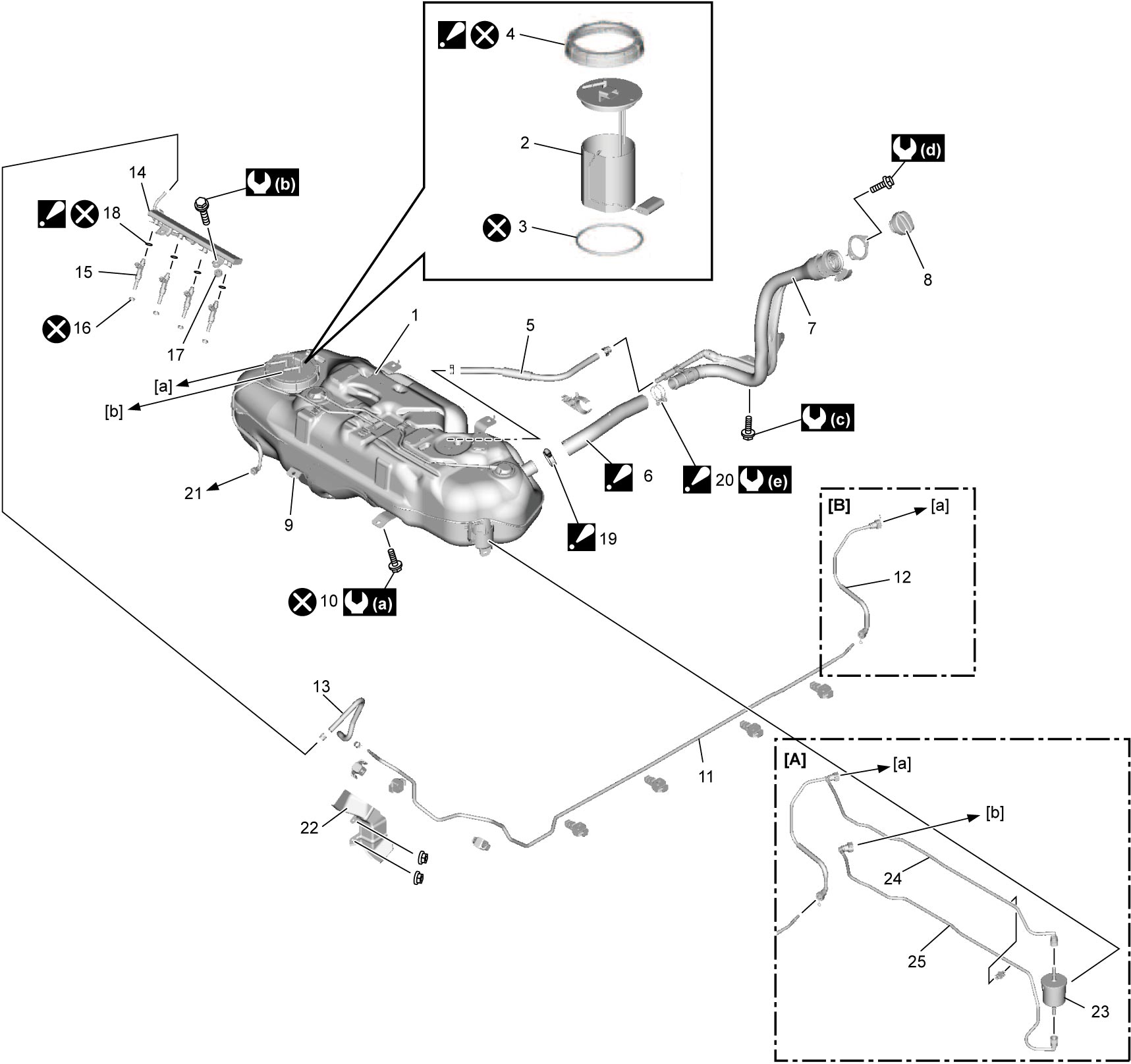

Fuel System Components
Precautions: Precautions for Fuel System Service · General safety (00)
| [A]: | Market code P37 | 10. | Fuel tank bolt | 21. | To EVAP canister |
| [B]: | Except P37 | 11. | Fuel feed pipe (body side) | 22. | Fuel pipe protector |
| 1. | Fuel tank | 12. | Fuel feed pipe (fuel pump side) | 23. | Fuel filter |
| 2. | Fuel pump assembly | 13. | Fuel feed hose | 24. | Fuel feed pipe (between fuel pump assembly and fuel filter) |
| 3. | O-ring | 14. | Fuel delivery pipe | 25. | Fuel pipe (between fuel filter and fuel feed pipe) |
 4. |
Fuel pump lock nut : For tightening procedure, refer to Fuel Pump Assembly Removal and Installation:M16A. |
15. | Fuel injector |
 : |
45 N·m (4.6 kgf-m, 33.5 lbf-ft) |
| 5. | Breather hose | 16. | Injector cushion |
 : |
25 N·m (2.5 kgf-m, 18.5 lbf-ft) |
|
6. |
Fuel tank filler hose : For installation, refer to Fuel Hose Disconnection and Reconnection:M16A. |
17. | Fuel delivery pipe insulator |
 : |
5.5 N·m (0.56 kgf-m, 4.0 lbf-ft) |
| 7. | Fuel filler neck |
18. |
Injector O-ring : Apply a bit of gasoline to install. |
 : |
2.0 N·m (0.20 kgf-m, 1.5 lbf-ft) |
| 8. | Fuel filler cap |
19. |
Fuel tank filler hose clamp : For installation, refer to Fuel Hose Disconnection and Reconnection:M16A. |
 : |
1.5 N·m (0.15 kgf-m, 1.51 lbf-ft) |
| 9. | Fuel tank belt |
20. |
Fuel tank filler clamp : For installation, refer to Fuel Hose Disconnection and Reconnection:M16A. |
 : |
Do not reuse. |
