Suzuki Vitara (LY) 2016-2017 · Service Manual D16AA · Repair Instructions

Fuel Pressure Relief Procedure

Precautions: Precautions for Fuel System Service · General safety (00)

1)Check that engine is cold.

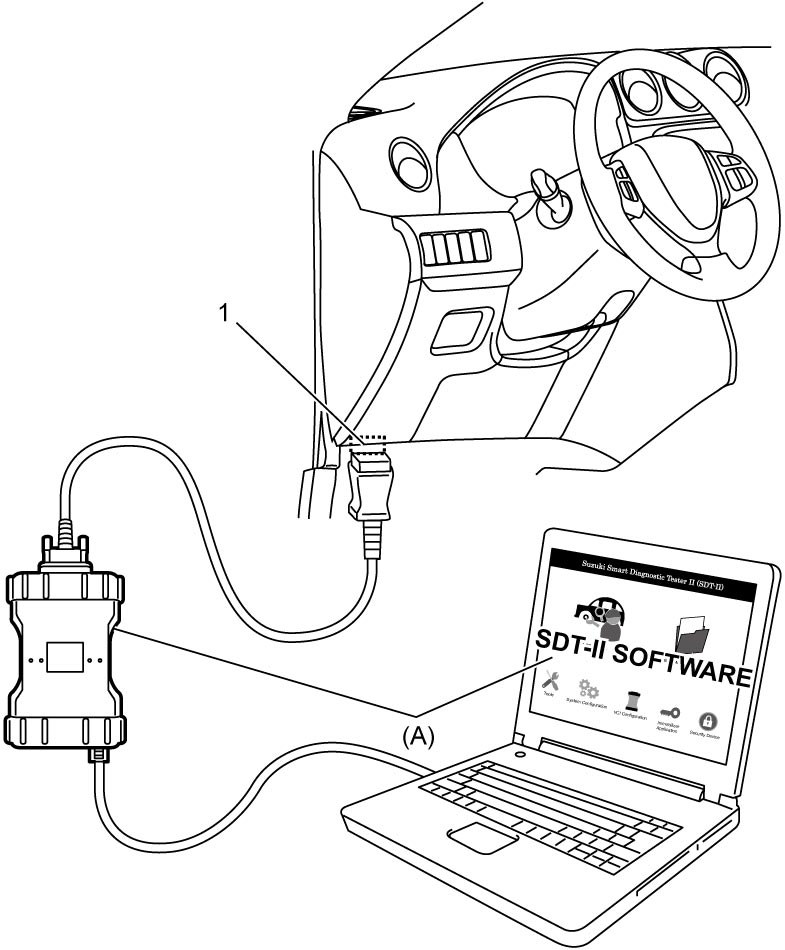

2)Connect SUZUKI scan tool to DLC (1) with ignition “OFF”.
3)Set ignition “ON”.
4)Check that fuel pressure line is not under pressure using “Fuel Rail Pressure” parameter of SUZUKI scan tool.
