Water Draining of Fuel Filter

Precautions: Precautions for Fuel System Service · General safety (00)

1)Disconnect negative (–) cable at battery.
2)Hoist vehicle.

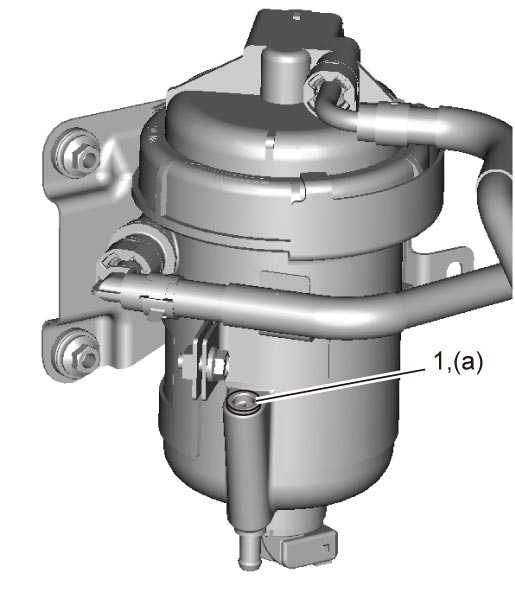

3)Place container under bleed screw (1), and drain out water by loosening bleed screw from lower side of engine until fuel flows out.
4)Tighten bleed screw (1) to specified torque.
Tightening torque
Bleed screw (a): 1.0 N·m (0.10 kgf-m, 1.0 lbf-ft)
5)Lower vehicle.
6)Connect negative (–) cable at battery.
7)Initialize fuel filter data in ECM. icon
