Fuel Level Sensor Inspection
Precautions: Precautions for Fuel System Service · General safety (00)

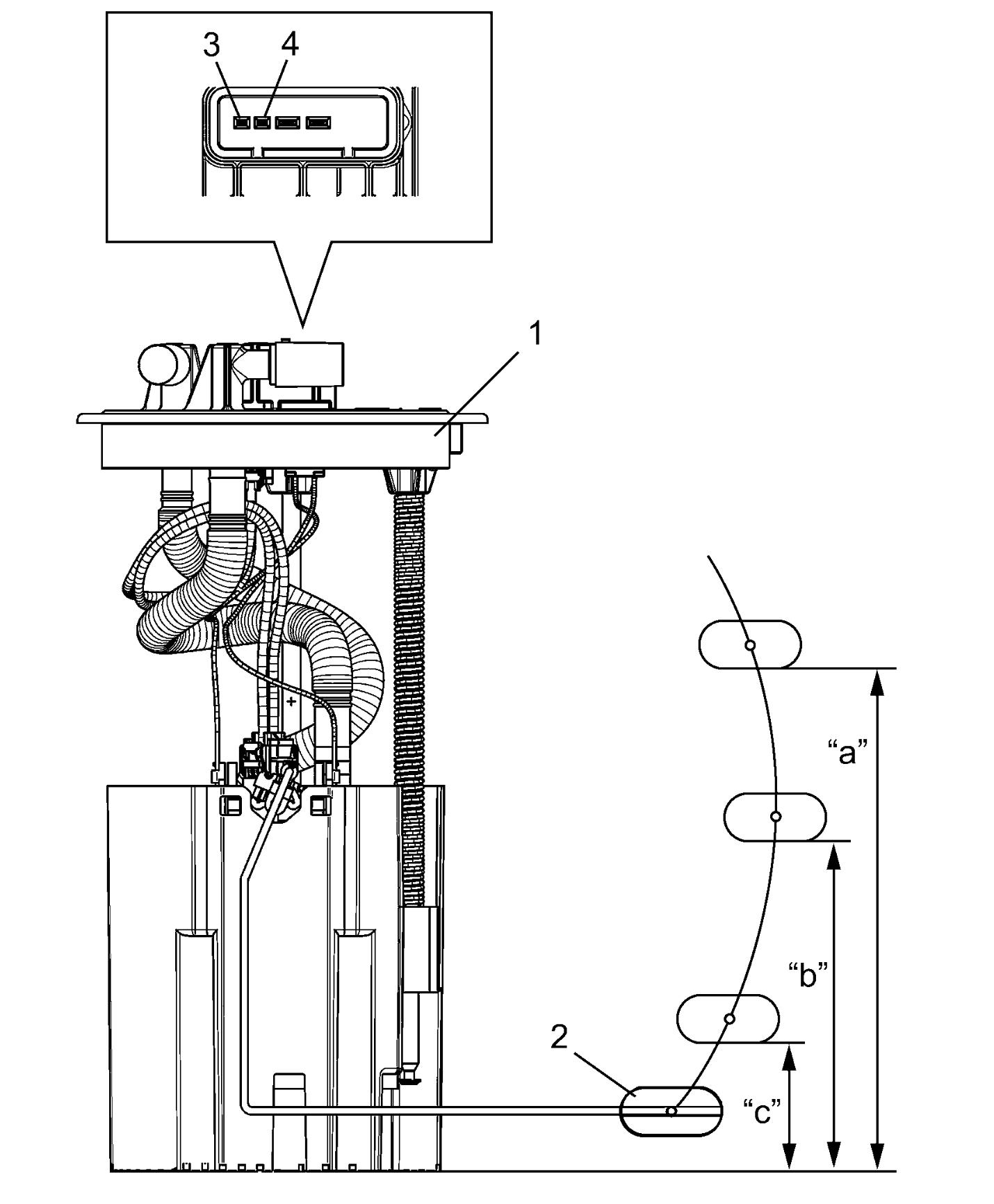

Check resistance between terminals “3” and “4” at each float position indicated below.
If check result is not as specified, replace fuel level sensor.
Fuel level sensor specifications
| Float position | Resistance (Ω) | |
|---|---|---|
| “a” | 189.4 mm (7.45 in.) | 38.5 – 41.5 |
| “b” | 127.9 mm (5.03 in.) | 158 – 162 |
| “c” | 43.6 mm (1.71 in.) | 264 – 269.4 |
| 1. | Fuel pump | 2. | Float |
