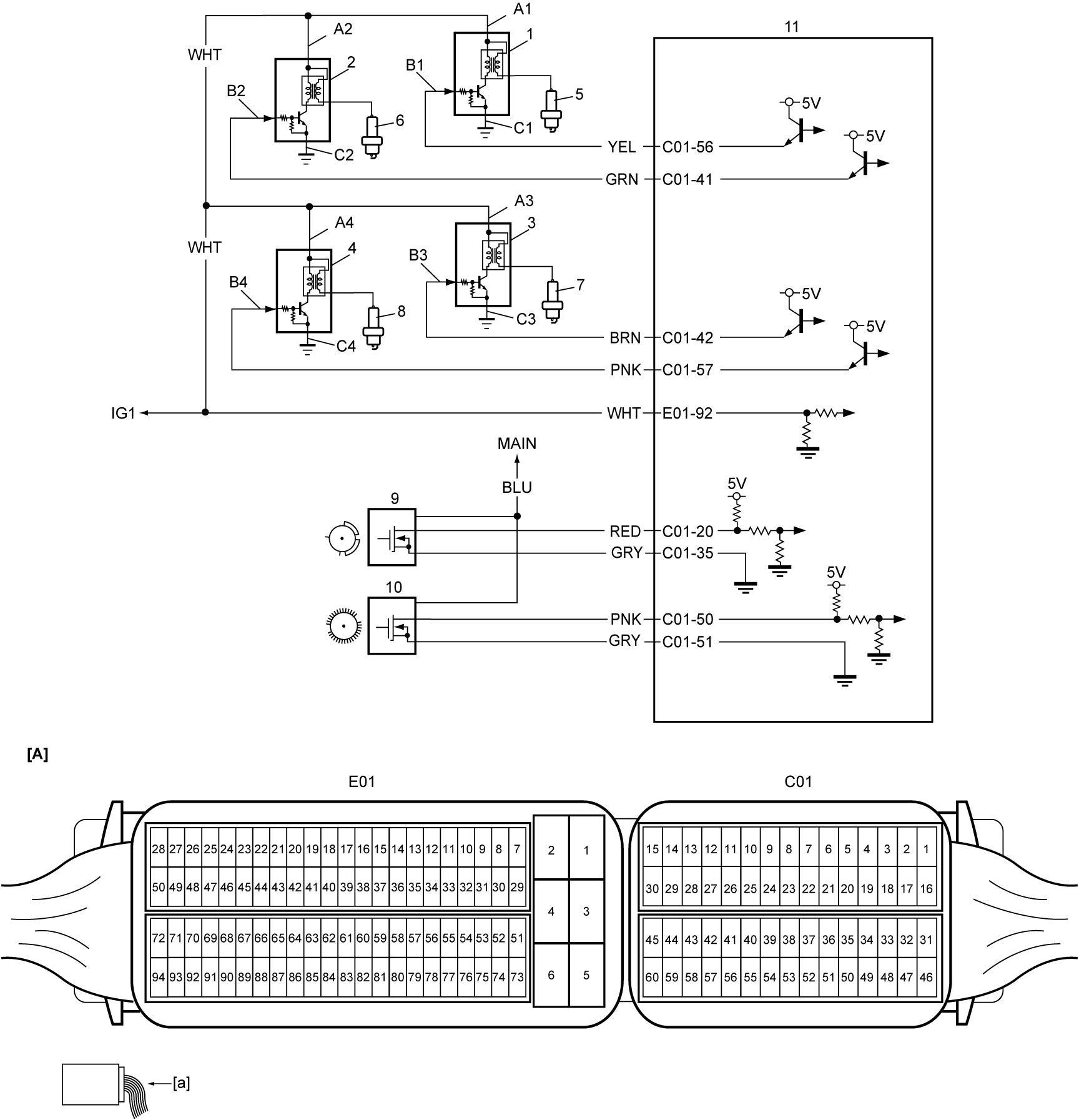

Ignition System Circuit Diagram
Precautions: General safety (00)
NOTE:
For identification of each cylinder, refer to Statement on Cleanliness and Care:K14C.
| [A]: | ECM connector (View: [a]) | 2. | Ignition coil assembly No.2 | 7. | Spark plug No.3 |
| A1 – A4: | Ignition coil assembly power supply circuits | 3. | Ignition coil assembly No.3 | 8. | Spark plug No.4 |
| B1 – B4: | Ignition coil assembly drive circuits | 4. | Ignition coil assembly No.4 | 9. | CMP sensor |
| C1 – C4: | Ignition coil assembly ground circuits | 5. | Spark plug No.1 | 10. | CKP sensor |
| 1. | Ignition coil assembly No.1 | 6. | Spark plug No.2 | 11. | ECM |
