Cranking System Circuit Diagram

Precautions: General safety (00)

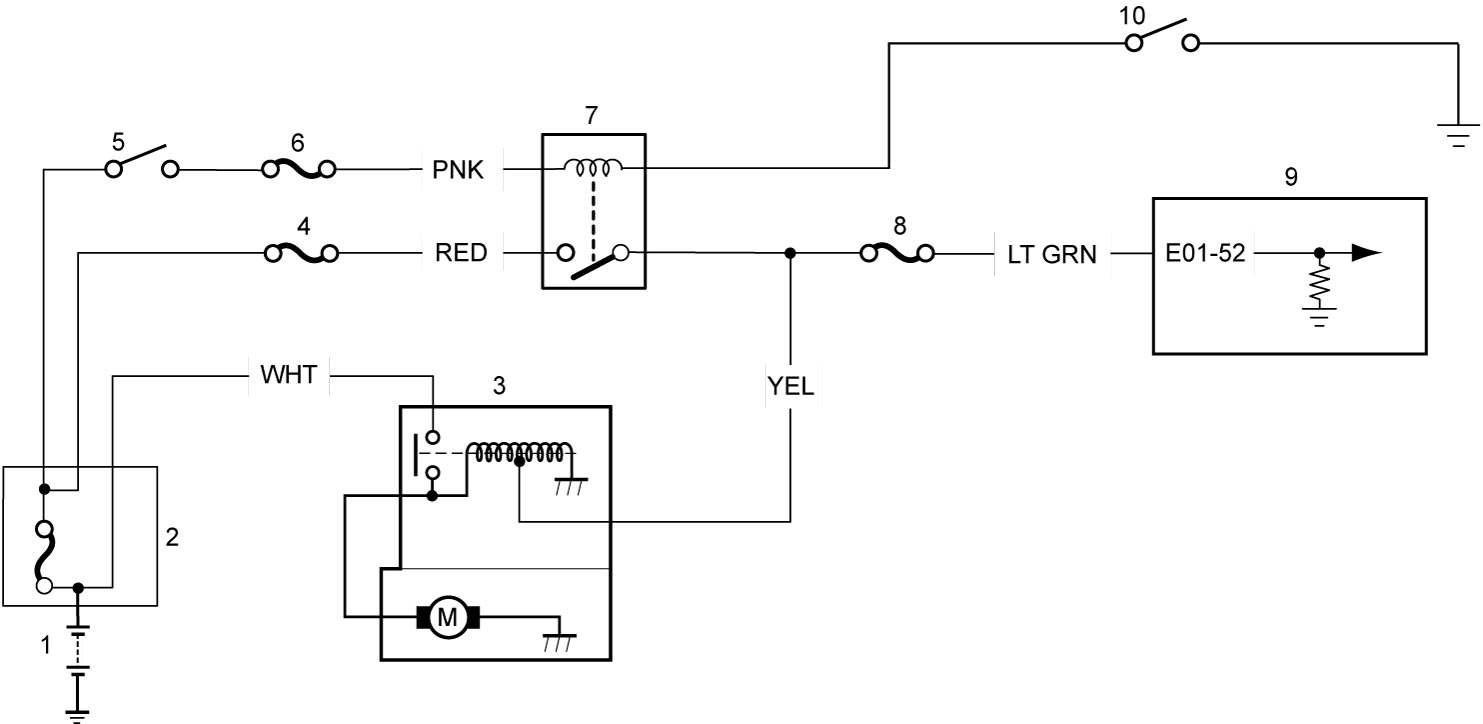

Ignition switch and non-ENG A-STOP model

1.	Battery	5.	Ignition switch	9.	ECM
2.	Main fuse box	6.	“ST SIG1” fuse	10.	Transmission range sensor (A/T model)
3.	Starting motor	7.	Starting motor control relay
4.	“ST” fuse	8.	“ST SIG2” fuse

Ignition switch and ENG A-STOP model

[A]:	M/T model	4.	“ST” fuse	8.	ST2 relay
1.	Battery	5.	Ignition switch	9.	ENG A-STOP control module
2.	Main fuse box	6.	“ST SIG1” fuse	10.	CPP No.1 switch (M/T model) or transmission range sensor (A/T model)
3.	Starting motor	7.	Starting motor control relay

Keyless push start and non-ENG A-STOP model

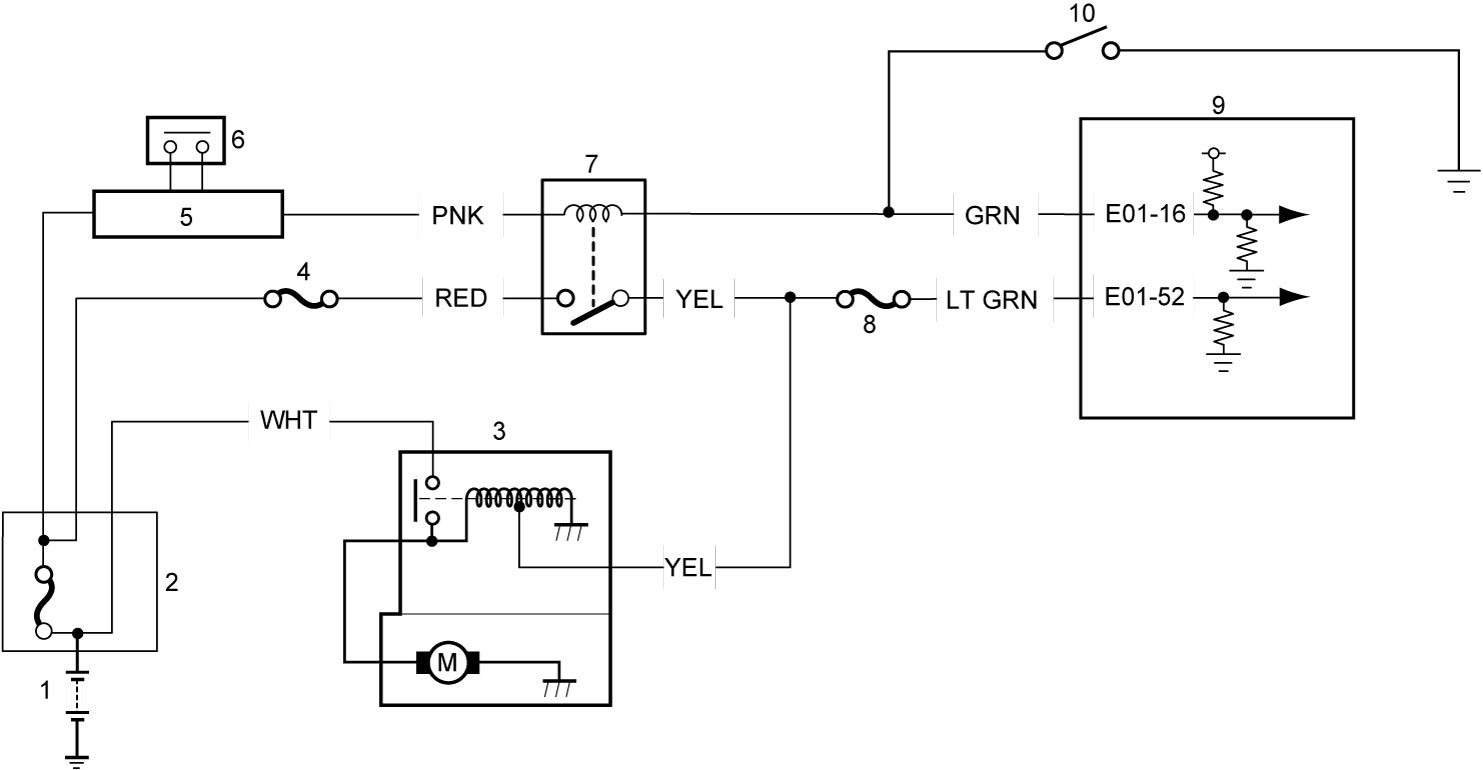

1.	Battery	5.	Keyless start control module	9.	ECM
2.	Main fuse box	6.	Engine switch	10.	CPP No.1 switch (M/T model) or transmission range sensor (A/T model)
3.	Starting motor	7.	Starting motor control relay
4.	“ST” fuse	8.	“ST SIG2” fuse

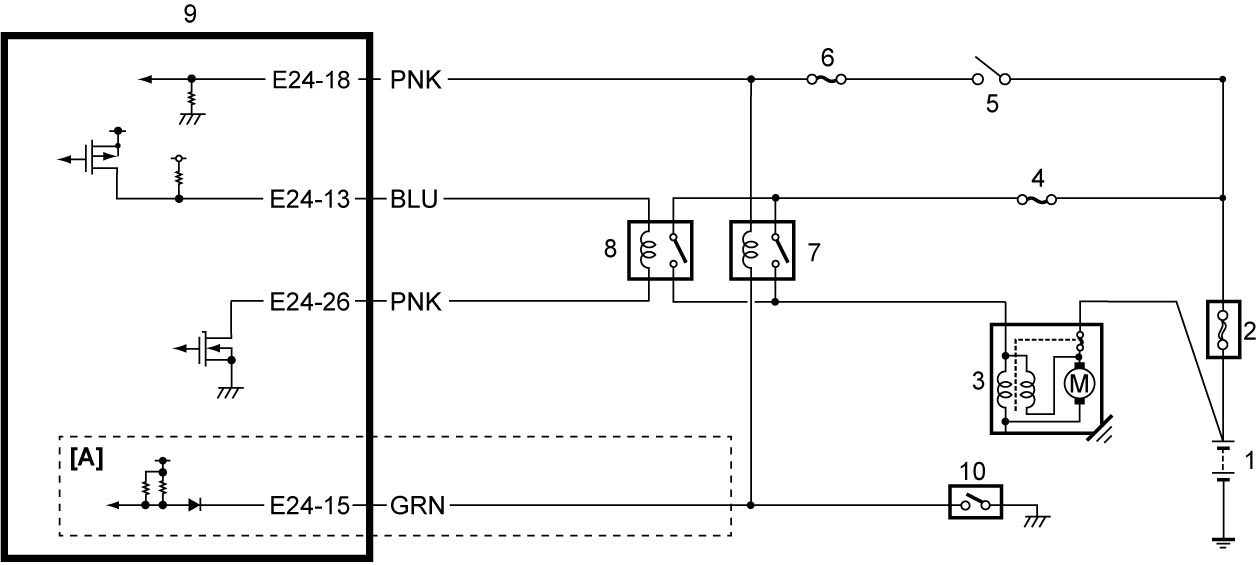

Keyless push start and ENG A-STOP model

[A]:	M/T model	4.	“ST” fuse	8.	ST2 relay
1.	Battery	5.	Keyless start control module	9.	ENG A-STOP control module
2.	Main fuse box	6.	Engine switch	10.	CPP No.1 switch (M/T model) or transmission range sensor (A/T model)
3.	Starting motor	7.	Starting motor control relay
