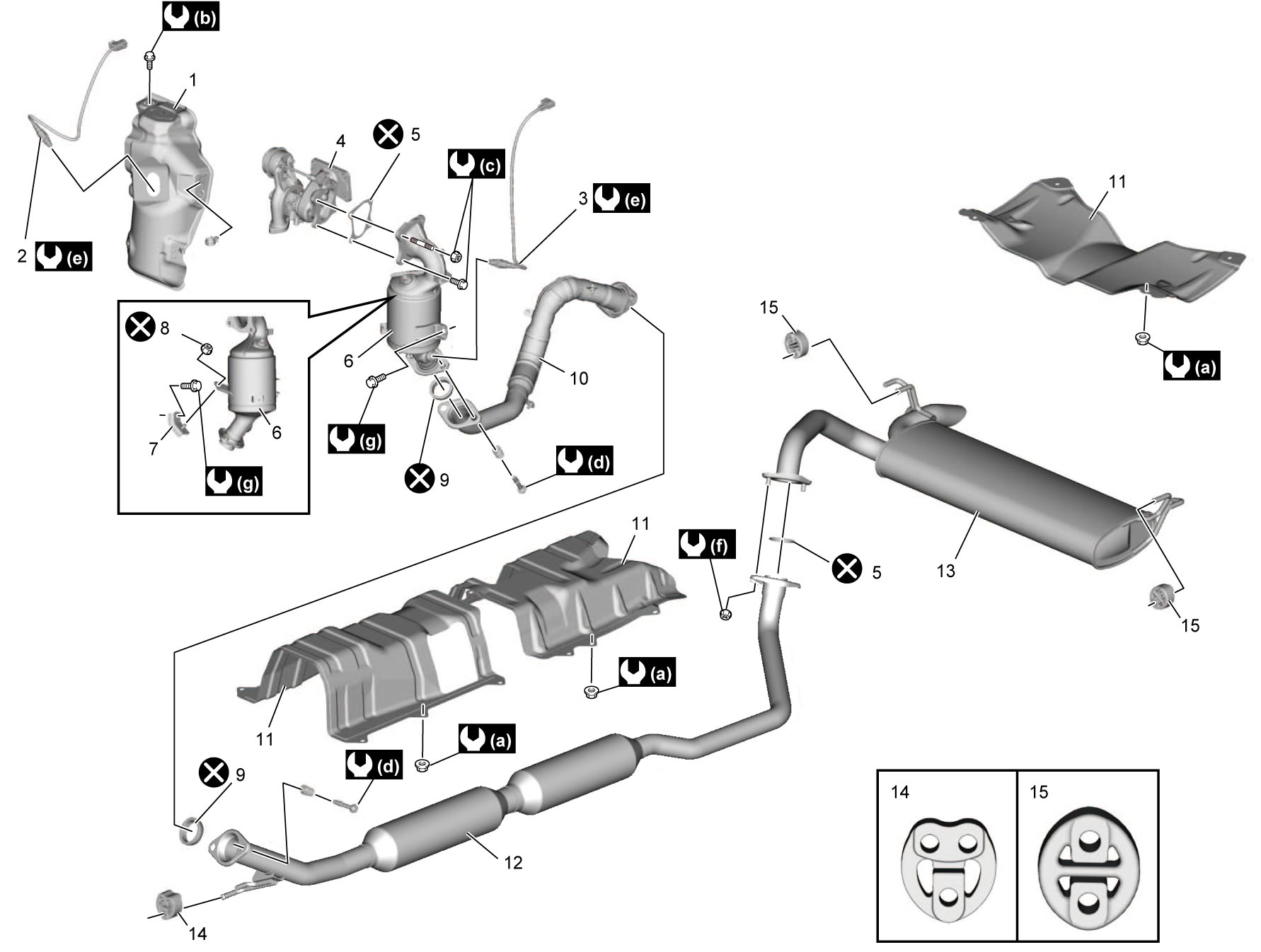

Exhaust System Components
Precautions: General safety (00)
| 1. | Catalytic converter cover | 9. | Seal ring |
 : |
11 N·m (1.1 kgf-m, 8.5 lbf-ft) |
| 2. | HO2S-1 (connector color: gray) | 10. | Exhaust No.1 pipe |
 : |
40 N·m (4.1 kgf-m, 29.5 lbf-ft) |
| 3. | HO2S-2 (connector color: black) | 11. | Heat insulator |
 : |
43 N·m (4.4 kgf-m, 32.0 lbf-ft) |
| 4. | Turbocharger | 12. | Exhaust center pipe |
 : |
45 N·m (4.6 kgf-m, 33.5 lbf-ft) |
| 5. | Gasket | 13. | Muffler |
 : |
50 N·m (5.1 kgf-m, 37.0 lbf-ft) |
| 6. | Catalytic converter | 14. | Mounting No.1 |
 : |
55 N·m (5.6 kgf-m, 40.5 lbf-ft) |
| 7. | Catalyst case stiffener | 15. | Mounting No.2 |
 : |
Do not reuse. |
| 8. | Catalyst case stiffener nut |
 : |
2.4 N·m (0.24 kgf-m, 2.0 lbf-ft) |
