Front Suspension Description
Precautions: Precautions for Handling of Front Strut · Precautions for Suspension · General safety (00)

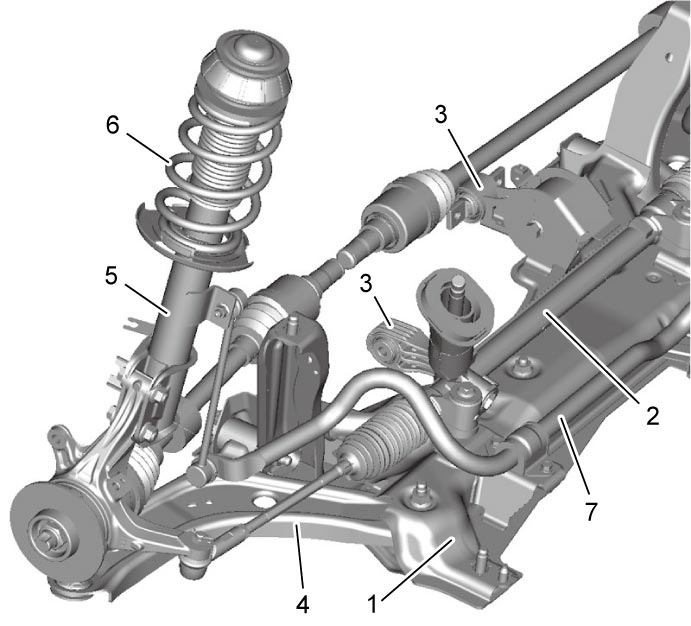

•Front suspension employs a McPherson strut type combined with suspension frame (1).
•The suspension frame supports steering gear case assembly (2), torque rod(s) (3) and suspension arms (4), to reduce vehicle vibration.
•Front strut assembly consists of a sealed cylindrical strut (5) filled with high-pressure gas and a coil spring (6).
•The front suspension also includes stabilizer bar (7), to improve anti-rolling performance of vehicle.
•The suspension frame supports steering gear case assembly (2), torque rod(s) (3) and suspension arms (4), to reduce vehicle vibration.
•Front strut assembly consists of a sealed cylindrical strut (5) filled with high-pressure gas and a coil spring (6).
•The front suspension also includes stabilizer bar (7), to improve anti-rolling performance of vehicle.
