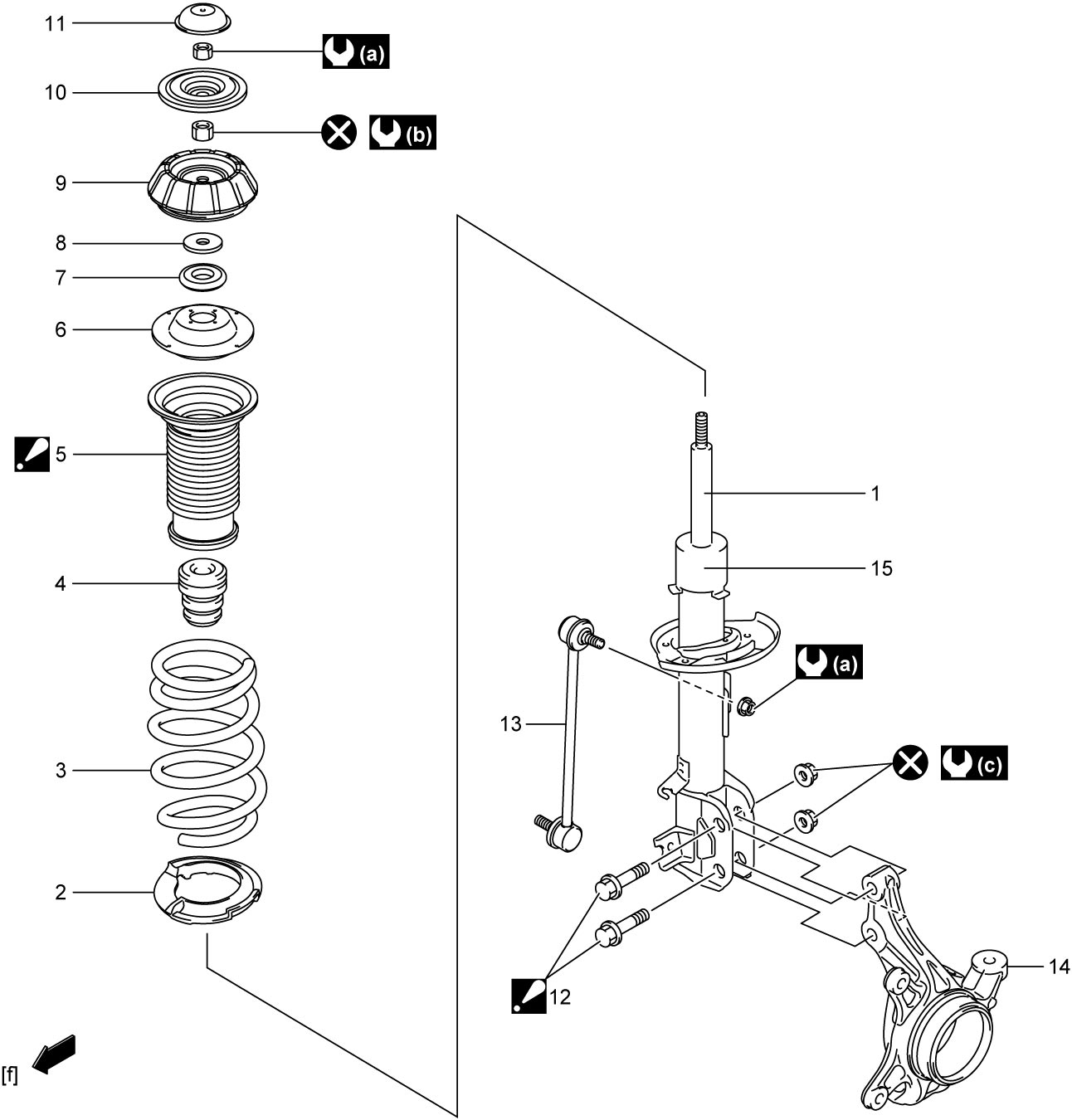

Front Strut Assembly Components
Precautions: Precautions for Handling of Front Strut · Precautions for Suspension · General safety (00)
| [f]: | Forward | 7. | Strut bearing | 14. | Steering knuckle |
| 1. | Front strut | 8. | Strut bearing plate | 15. | Damper cap |
| 2. | Coil spring lower seat | 9. | Strut support |
 : |
50 N·m (5.1 kgf-m, 37.0 lbf-ft) |
| 3. | Coil spring | 10. | Rebound stopper |
 : |
55 N·m (5.6 kgf-m, 40.5 lbf-ft) |
| 4. | Bump stopper | 11. | Strut rod cap |
 : |
140 N·m (14.3 kgf-m, 103.5 lbf-ft) |
 5. |
Strut dust cover : Set strut dust cover over of damper cap. |
12. |
Strut bracket bolt : Insert from vehicle front side. |
 : |
Do not reuse. |
| 6. | Coil spring upper seat | 13. | Stabilizer joint |
