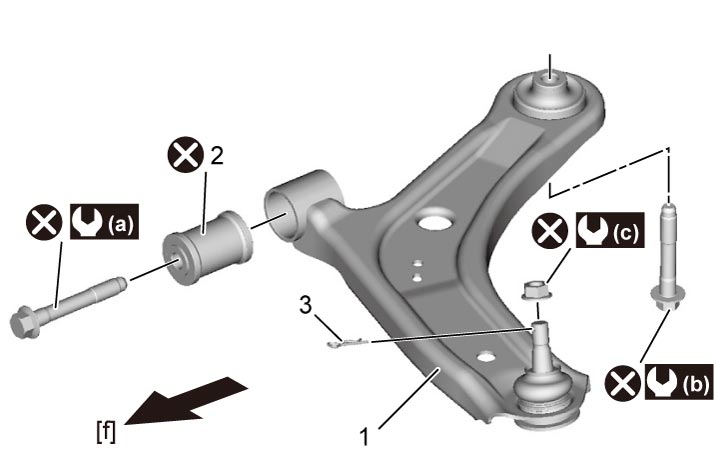

Suspension Arm Components

Precautions: Precautions for Handling of Front Strut · Precautions for Suspension · General safety (00)

[f]:	Forward
1.	Suspension arm
2.	Suspension arm front bushing
3.	Clip
:	165 N·m (16.8 kgf-m, 122.0 lbf-ft)
:	95 N·m (9.7 kgf-m, 70.0 lbf-ft)
:	65 N·m (6.6 kgf-m, 48.0 lbf-ft)
:	Do not reuse.
