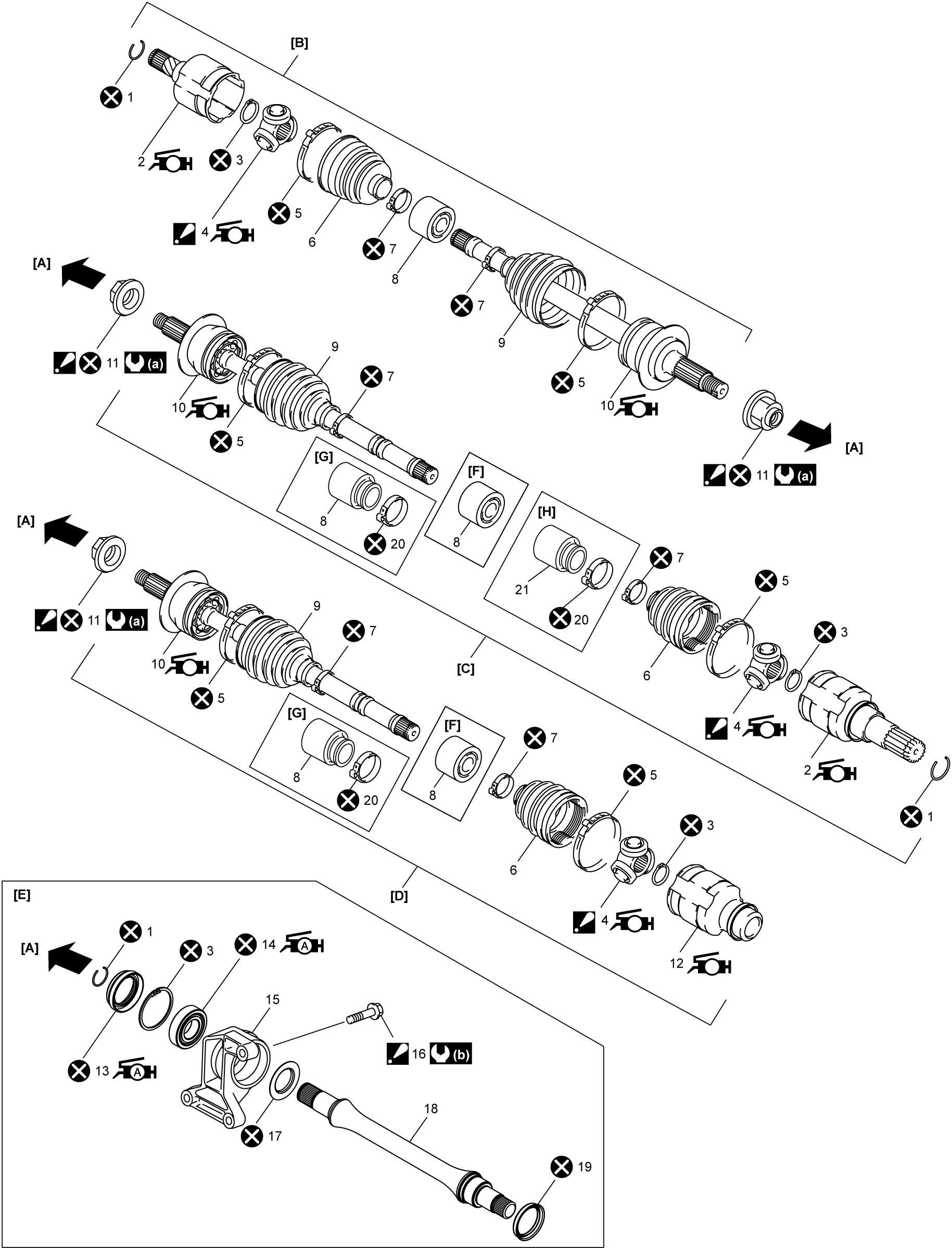

Front Drive Shaft Components
Precautions: General safety (00)
| [A]: | Wheel side | 9. | Wheel side boot |
| [B]: | Left side drive shaft assembly |
  10. |
Wheel side joint assembly : Never disassemble. : Apply grease from the service kit to wheel side joint assembly. |
| [C]: | M16A–2WD model–Right side drive shaft assembly |
11. |
Drive shaft nut : After tightening nut to specified torque, caulk nut securely. |
| [D]: | M16A–4WD model–Right side drive shaft assembly, K14C–4WD model–Right side drive shaft assembly or D16AA model–Right side drive shaft assembly |
12. |
Transfer side or drive intermediate shaft side joint housing : Apply grease from the service kit to transfer side or drive intermediate shaft side joint housing. |
| [E]: | D16AA–2WD model–Drive intermediate shaft assembly |
 13. |
Dust seal : Apply grease 99000-25011 to dust seal lip. |
| [F]: | M16A–M/T model or D16AA-M/T model | 14. | Intermediate shaft bearing : Apply grease 99000-25011 to side space. |
| [G]: | M16A–A/T model or K14C model | 15. | Intermediate shaft bearing support |
| [H]: | K14C–2WD model |
16. |
Intermediate support bolt : For tightening order, refer to Drive Intermediate Shaft Assembly Removal and Installation (Diesel - 2WD Model):Front. |
| 1. | Snap ring | 17. | Bearing shield |
|
2. |
Differential side joint housing : Apply grease from the service kit to differential side joint housing. |
18. | Drive intermediate shaft |
| 3. | Circlip | 19. | Deflector |
|
4. |
Tripod joint : Never disassemble. : Apply grease from the service kit to tripod joint. |
20. | Damper band |
| 5. | Boot band (Big) | 21. | Damper No.2 |
| 6. | Differential side boot |
 : |
200 N·m (20.4 kgf-m, 147.5 lbf-ft) |
| 7. | Boot band (Small) |
 : |
55 N·m (5.6 kgf-m, 40.5 lbf-ft) |
| 8. | Damper No.1 |
 : |
Do not reuse. |
