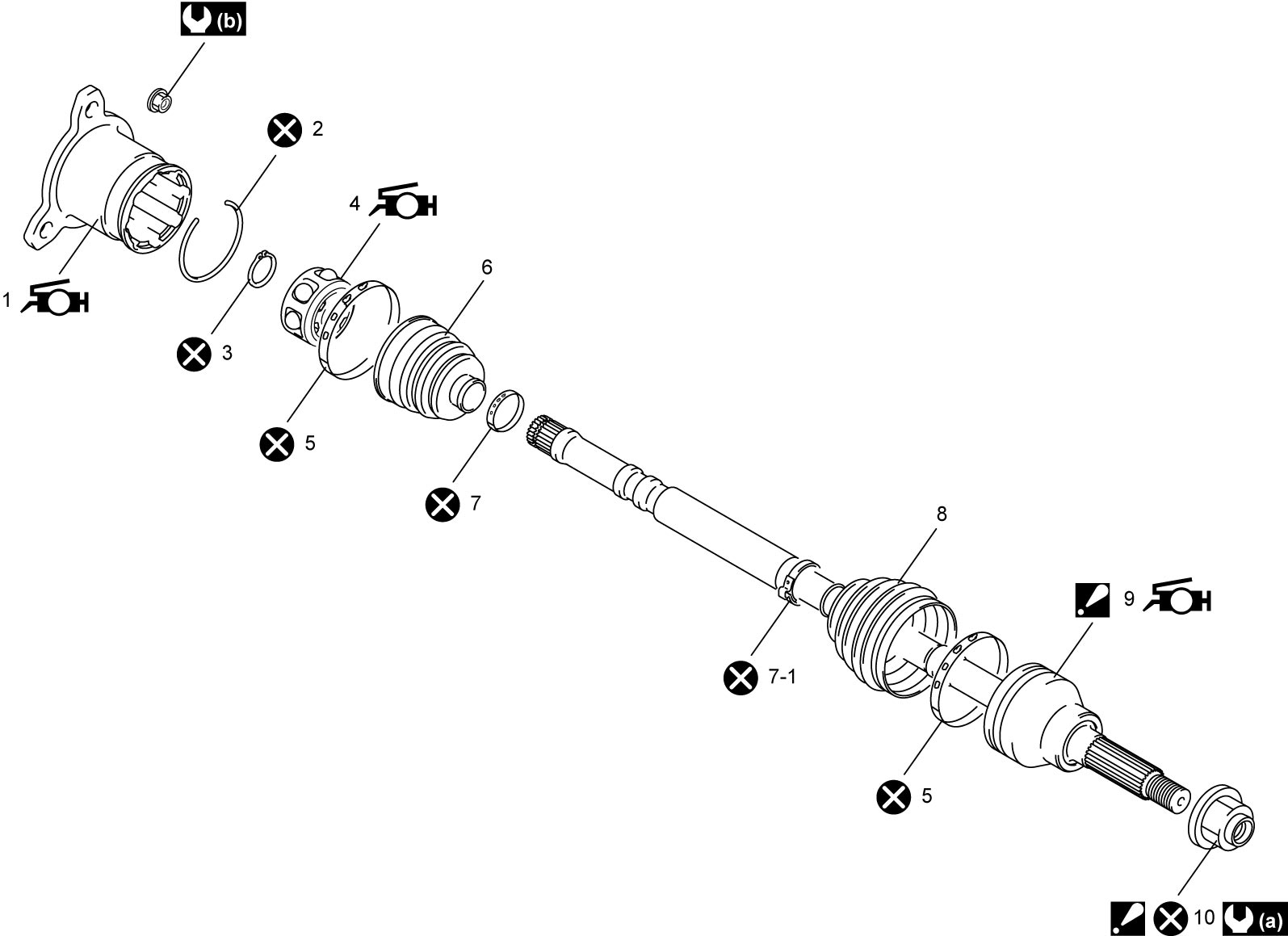

Rear Drive Shaft Components
Precautions: General safety (00)
 1. |
Differential side joint housing : Apply grease from the service kit to differential side joint housing. |
7-1. | Boot small band (Caulking type) |
| 2. | Snap ring | 8. | Wheel side boot |
| 3. | Circlip |
 9. |
Wheel side joint assembly : Never disassemble. : Apply grease from the service kit to wheel side joint assembly. |
|
4. |
Cage : Apply grease from the service kit to cage. |
10. |
Drive shaft nut : After tightening nut to specified torque, caulk nut securely. |
| 5. | Boot band (Big) |
 : |
175 N·m (17.8 kgf-m, 129.0 lbf-ft) |
| 6. | Differential side boot |
 : |
50 N·m (5.1 kgf-m, 37.0 lbf-ft) |
| 7. | Boot small band (Hooking type) |
 : |
Do not reuse. |
