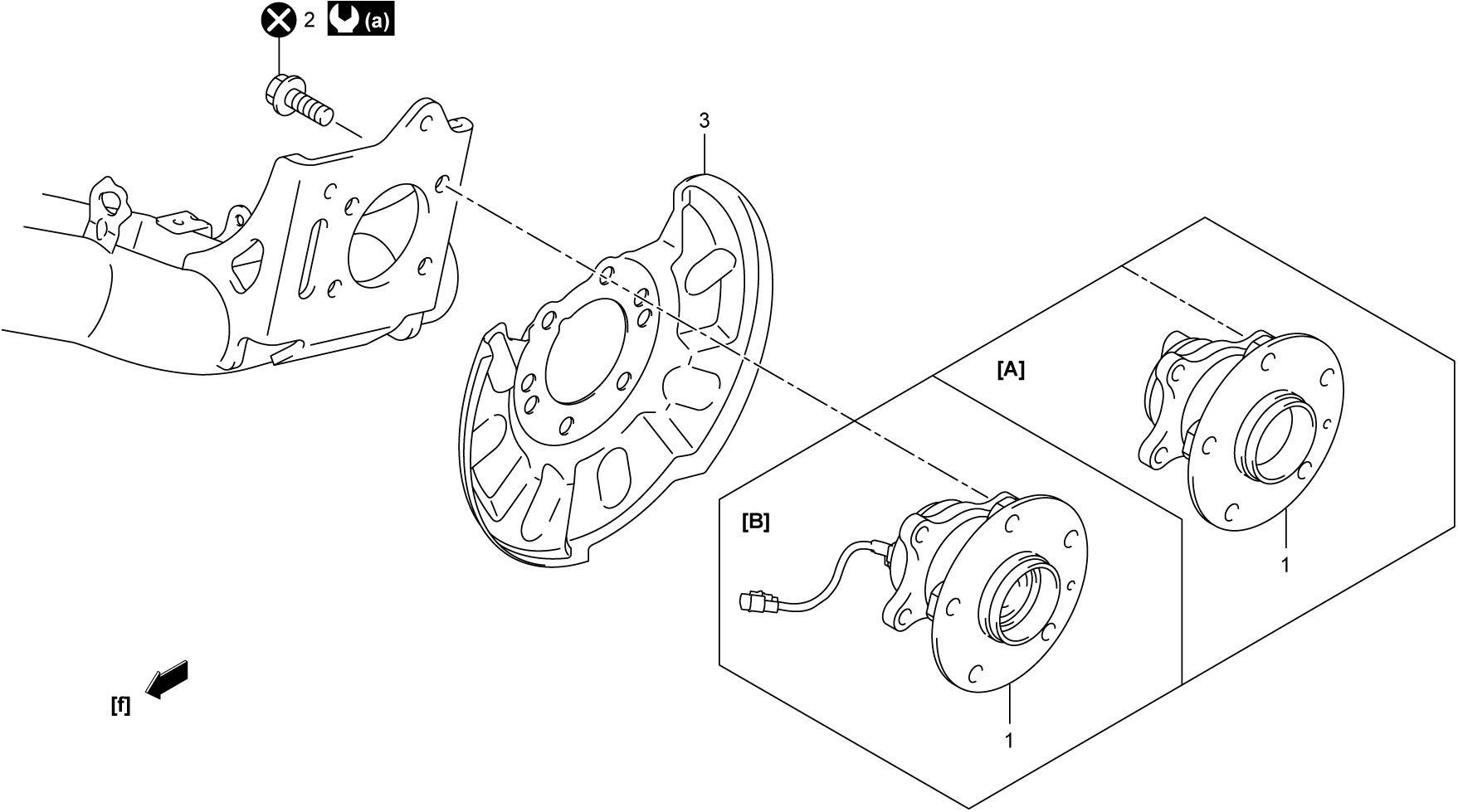

Rear Wheel Hub Components
Precautions: General safety (00)
| [A]: | 2WD model | 2. | Wheel hub assembly bolt |
 : |
Do not reuse. |
| [B]: | 4WD model | 3. | Rear brake disc dust cover | ||
| 1. | Rear wheel hub assembly |
 : |
88 N·m (9.0 kgf-m, 65.0 lbf-ft) |
Precautions: General safety (00)
| [A]: | 2WD model | 2. | Wheel hub assembly bolt |
: |
Do not reuse. |
| [B]: | 4WD model | 3. | Rear brake disc dust cover | ||
| 1. | Rear wheel hub assembly |
: |
88 N·m (9.0 kgf-m, 65.0 lbf-ft) |
