Rear Differential Oil Level Check

1)Hoist vehicle and check oil leakage.
If leakage exists, correct it.

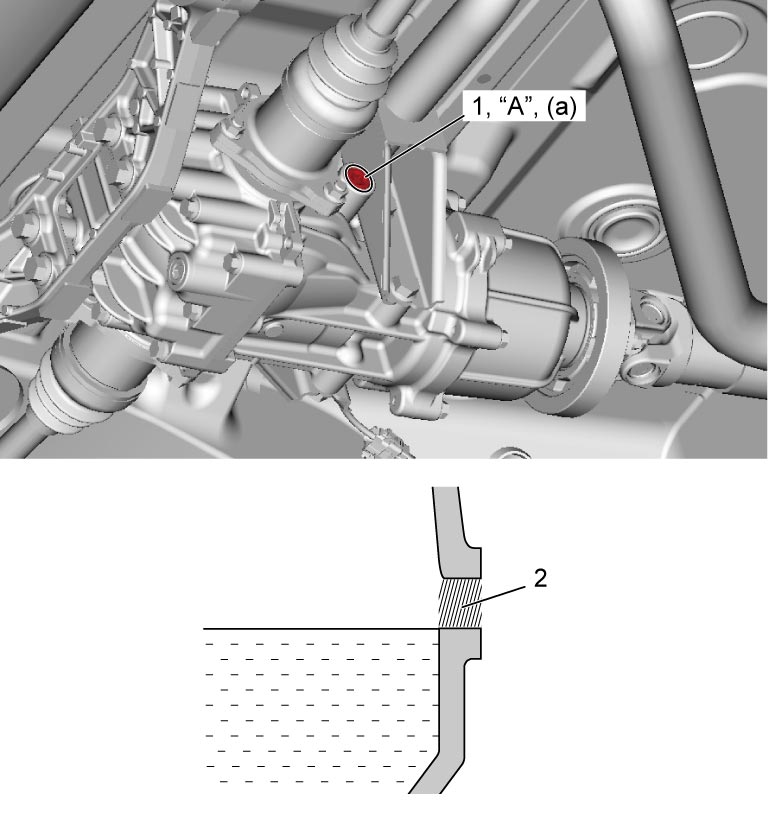

2)Remove rear differential oil level / filler plug (1), check oil contamination, and that the oil is just below the rear differential oil level / filler plug hole (2).
If oil is excessively dirty or insufficient, replace or add specified oil up to plug hole.

3)Apply sealant to thread of rear differential oil level / filler plug, and then tighten it to specified torque.
