4WD Control Module Removal and Installation

Precautions: Precautions for Diagnosing Trouble · Precautions for Driveline / Axle · General safety (00)

Removal

1)Disconnect negative (–) cable at battery.

2)Remove left side quarter lower trim.

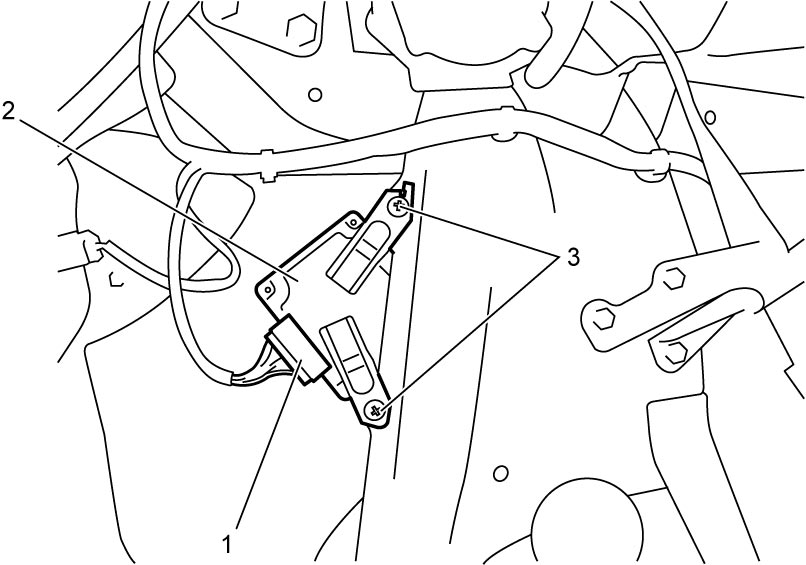

3)Disconnect connector (1) from 4WD control module (2).

4)Remove screws (3), and then remove 4WD control module.

Installation

Reverse removal procedure.
