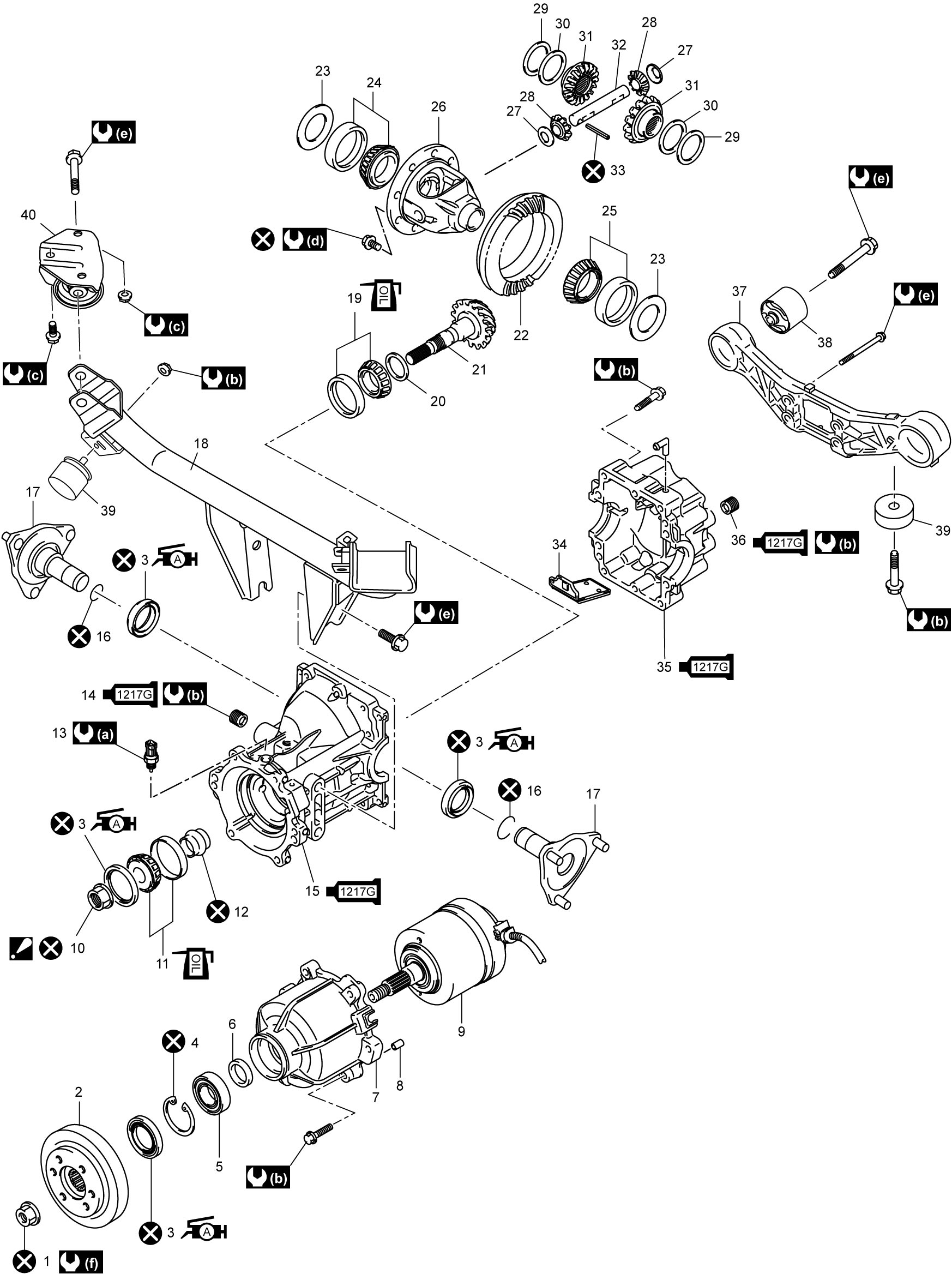

Rear Differential Components
Precautions: Precautions for Diagnosing Trouble · Precautions for Driveline / Axle · General safety (00)
| 1. | Companion flange nut | 18. | Rear differential mounting arm |
 35. |
Differential cover : Apply grease 99000-25011 to mating surface of differential cover and differential carrier. |
| 2. | Companion flange | 19. | Rear bearing |
36. |
Rear differential oil drain plug : Apply sealant 99000-31260 to thread part. |
 3. |
Oil seal : Apply grease 99000-25011 to oil seal lip. |
20. | Bevel pinion shim | 37. | Rear differential mounting rear bracket |
| 4. | Circlip | 21. | Bevel pinion | 38. | Rear differential mounting rear bracket bushing |
| 5. | Rear drive coupling front bearing | 22. | Bevel gear | 39. | Mass damper (if equipped) |
| 6. | Spacer | 23. | Differential side shim | 40. | Rear differential front mounting |
| 7. | Rear drive coupling case | 24. | Differential right side bearing |
 : |
18 N·m (1.8 kgf-m, 13.5 lbf-ft) |
| 8. | Rear drive coupling pin | 25. | Differential left side bearing |
 : |
23 N·m (2.3 kgf-m, 17.0 lbf-ft) |
| 9. | Rear drive coupling unit | 26. | Differential case |
 : |
50 N·m (5.1 kgf-m, 37.0 lbf-ft) |
 10. |
Bevel pinion nut : Tighten nut so as rotation torque of bevel pinion to be in specified value.
|
27. | Pinion washer |
 : |
78 N·m (8.0 kgf-m, 57.5 lbf-ft) |
| 11. | Front bearing | 28. | Pinion |
 : |
80 N·m (8.2 kgf-m, 59.0 lbf-ft) |
| 12. | Bevel pinion spacer | 29. | Side washer |
 : |
110 N·m (11.2 kgf-m, 81.5 lbf-ft) |
| 13. | Rear drive coupling air temperature sensor | 30. | Spring washer |
 : |
Apply differential oil. |
|
14. |
Rear differential oil level / filler plug : Apply sealant 99000-31260 to thread part. |
31. | Differential side gear |
 : |
Do not reuse. |
|
15. |
Differential carrier : Apply grease 99000-25011 to mating surface of differential carrier and rear drive coupling case. |
32. | Pinion shaft | ||
| 16. | Snap ring | 33. | Pinion shaft pin | ||
| 17. | Rear drive shaft flange | 34. | Differential cover plate |
