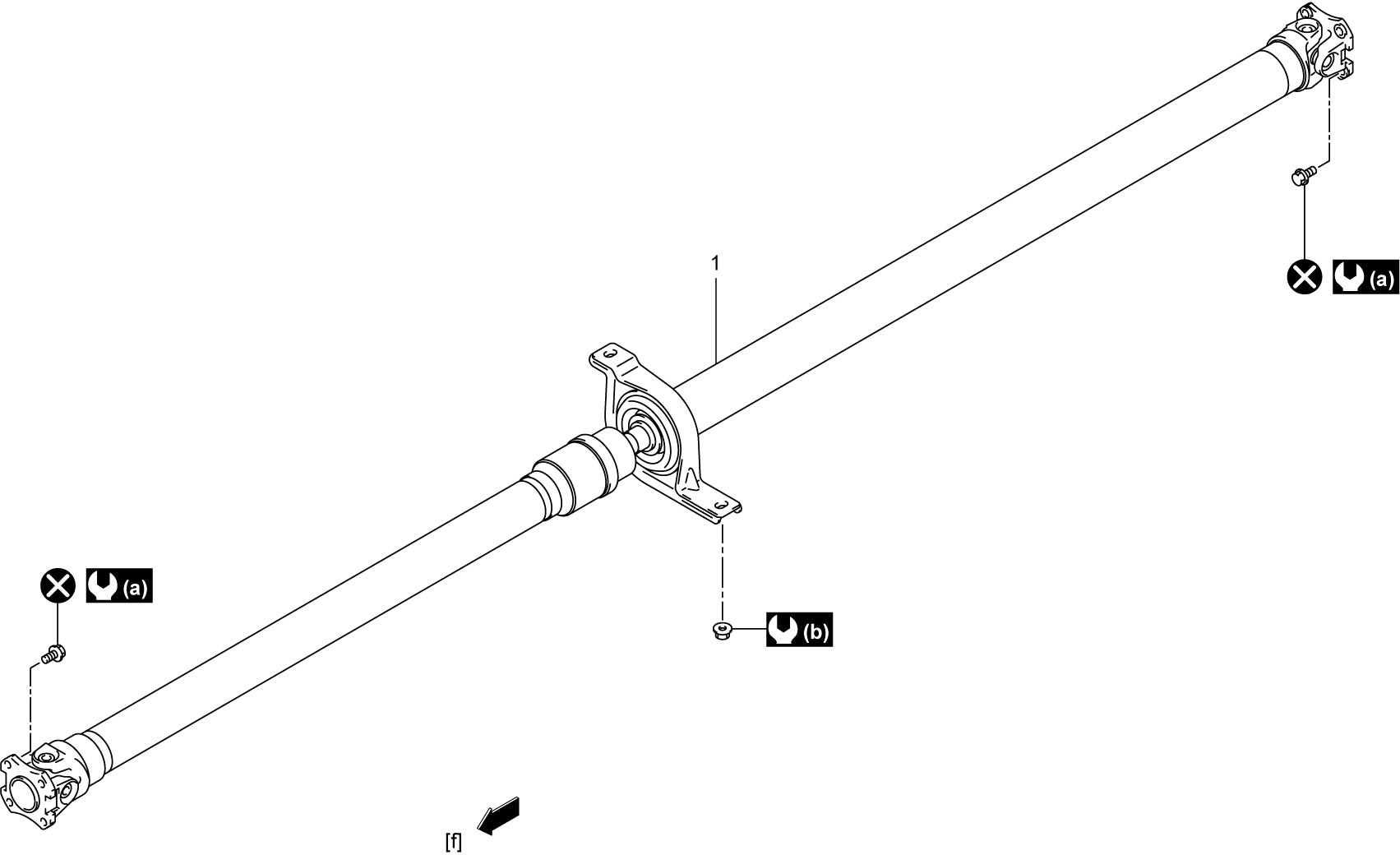

Propeller Shaft Construction
Precautions: Precautions for Driveline / Axle · General safety (00)
Universal joints and ball joint require no maintenance. They are lubricated for life and cannot be lubricated on the vehicle. If a universal joint becomes noisy or worn, it must be replaced as a propeller shaft assembly.
The propeller shaft is a balanced unit. Handle it carefully so that balance can be maintained.
| [f]: | Vehicle front |
 : |
33 N·m (3.4 kgf-m, 24.5 lbf-ft) |
 : |
Do not reuse. |
| 1. | Propeller shaft assembly |
 : |
50 N·m (5.1 kgf-m, 37.0 lbf-ft) |
