Brake Pedal Foot Protection System Construction

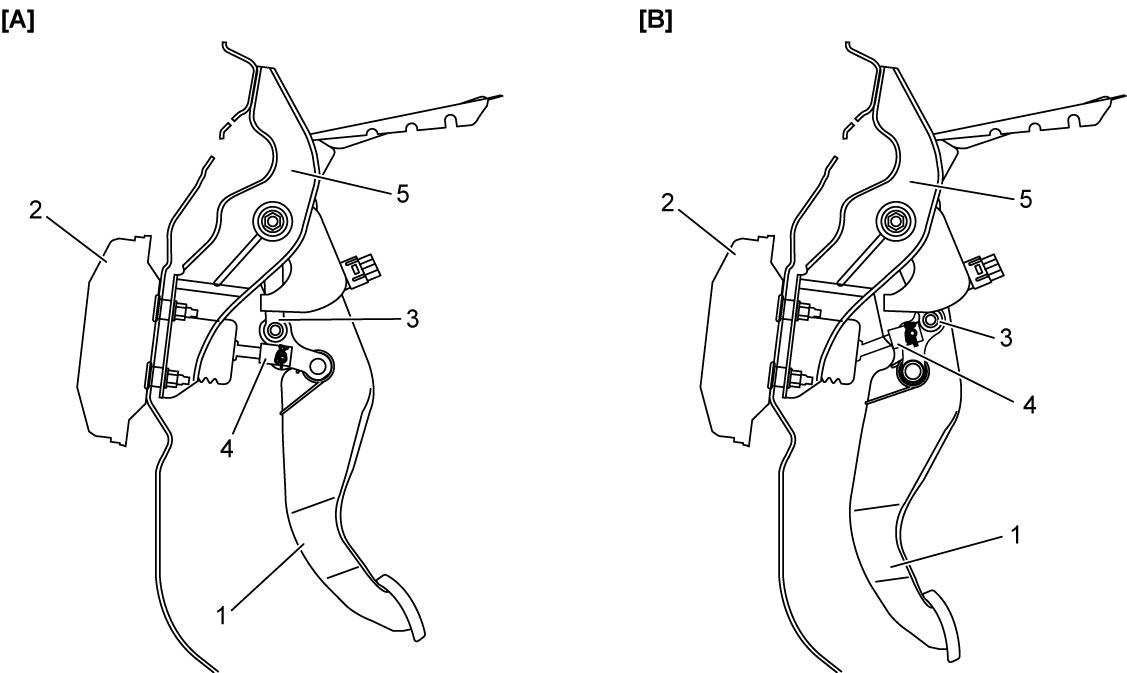

Should a frontal crash occur, the engine pushes the dash panel toward the interior and the brake pedal bracket (5) is also pushed rearward. In this case, the brake pedal lever (3) comes off from the brake pedal (1), to prevent the brake pedal from moving rearward.
