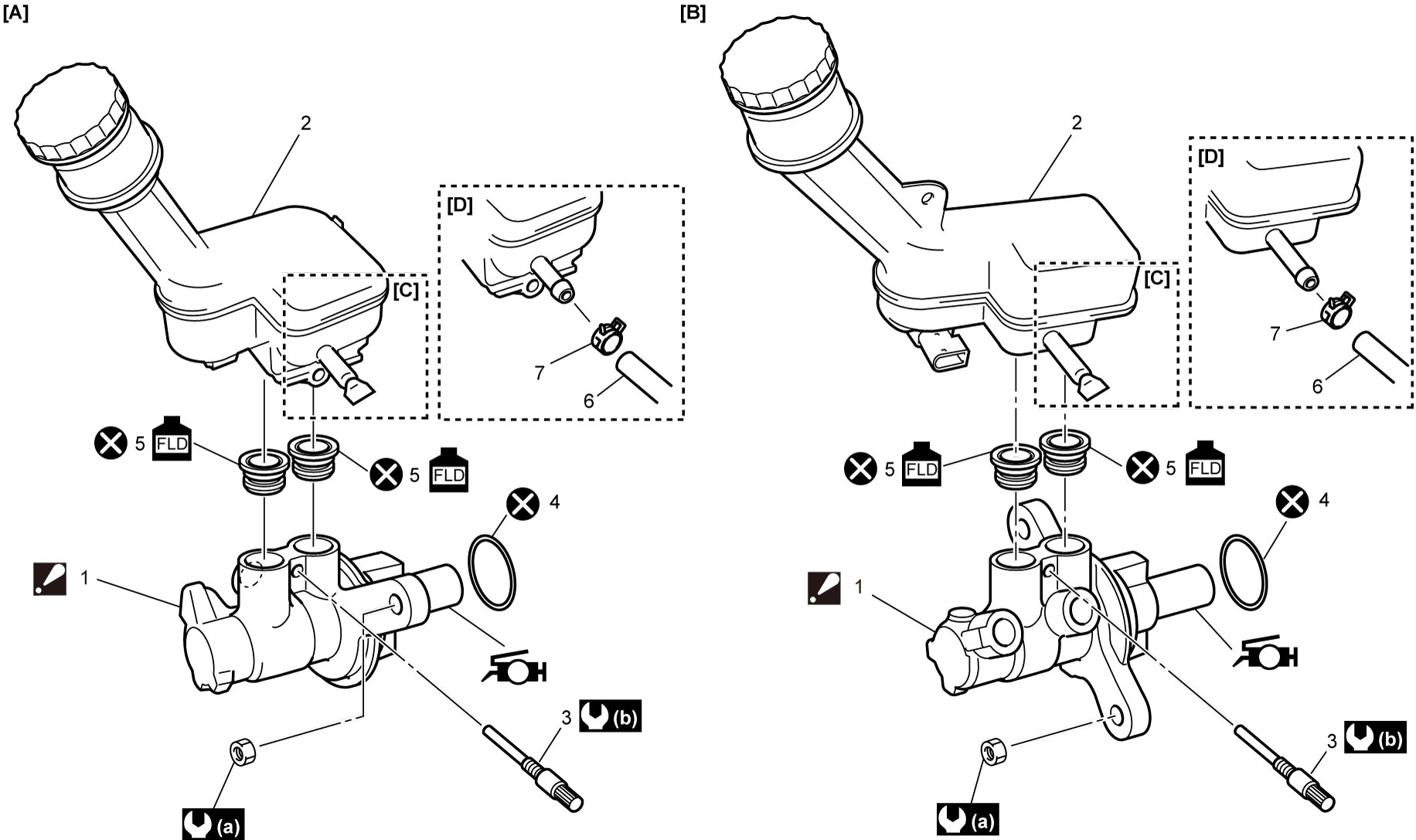

Brake Master Cylinder Components
Precautions: Precautions for Brake Service · Precautions for Brakes · General safety (00)
| [A]: | LHD | 2. | Reservoir | 7. | Hose clamp |
| [B]: | RHD | 3. | Reservoir connector screw |
 : |
20 N·m (2.0 kgf-m, 15.0 lbf-ft) |
| [C]: | A/T model | 4. | O-ring |
 : |
4.0 N·m (0.41 kgf-m, 3.0 lbf-ft) |
| [D]: | M/T model |
 5. |
Grommet : Apply brake fluid. |
 : |
Apply grease to piston rod (Grease included in spare part for brake master cylinder or brake booster) |
 1. |
Brake master cylinder : Do not disassemble. |
6. | Clutch reservoir hose |
 : |
Do not reuse. |
