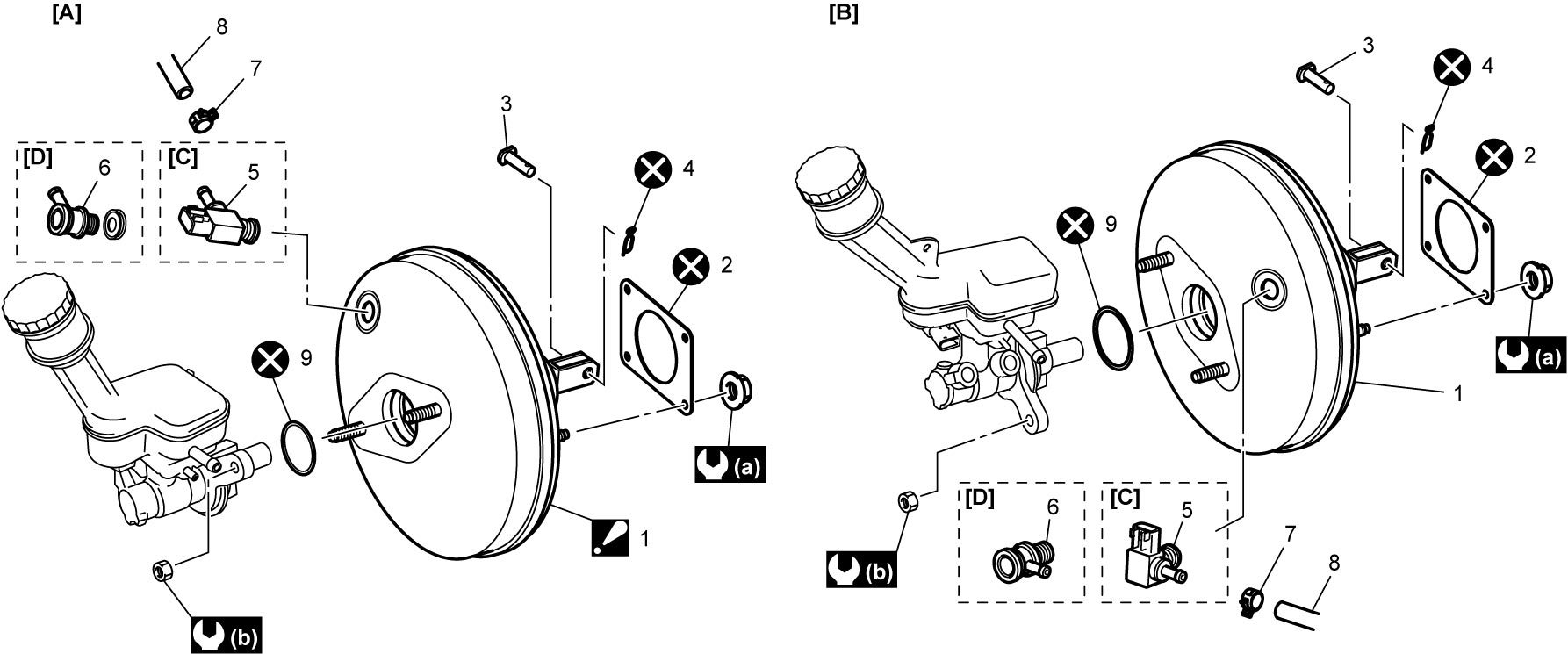

Brake Booster Components
Precautions: Precautions for Brake Service · Precautions for Brakes · General safety (00)
| [A]: | LHD | 3. | Clevis pin | 9. | O-ring |
| [B]: | RHD | 4. | Clip |
 : |
13 N·m (1.3 kgf-m, 9.5 lbf-ft) |
| [C]: | ENG A-STOP model | 5. | Brake booster pressure sensor |
 : |
20 N·m (2.0 kgf-m, 15.0 lbf-ft) |
| [D]: | Non-ENG A-STOP model | 6. | Check valve |
 : |
Do not reuse. |
 1. |
Brake booster : Do not disassemble. |
7. | Hose clamp | ||
| 2. | Gasket | 8. | Vacuum hose |
