Brake Booster Pressure Sensor Removal and Installation (ENG A-STOP Model)

Precautions: Precautions for Brake Service · Precautions for Brakes · General safety (00)

Removal

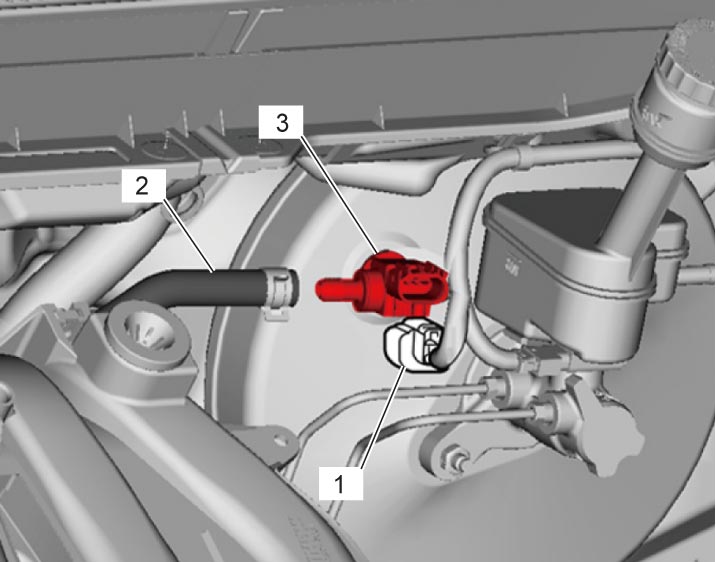

1)Disconnect brake booster pressure sensor connector (1).

2)Disconnect vacuum hose (2) from brake booster.

3)Remove brake booster pressure sensor (3).

Installation

Reference: Brake Booster Pressure Sensor Inspection (ENG A-STOP Model)

Reverse removal procedure.
