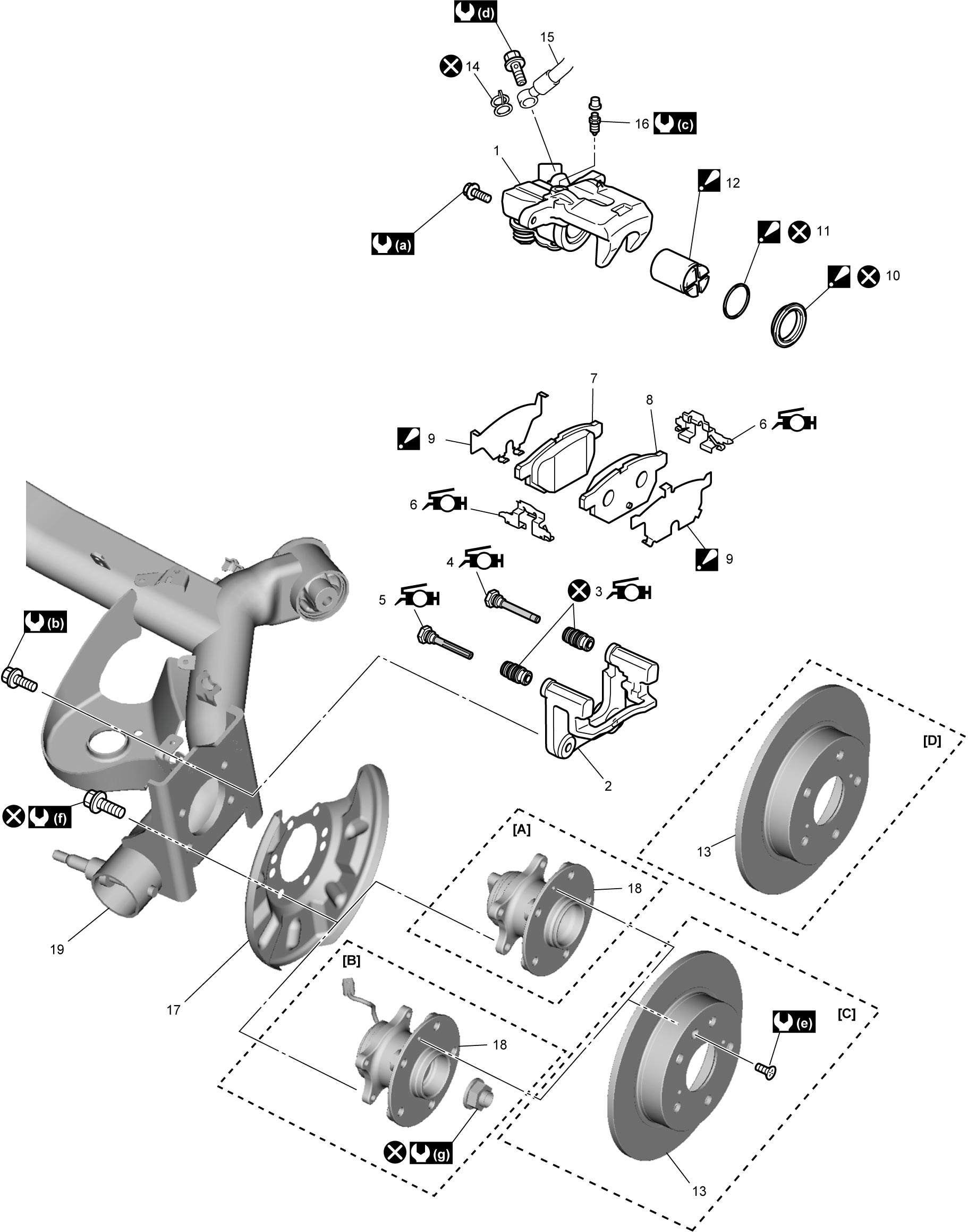

Rear Brake Components
Precautions: Precautions for Brakes · General safety (00)
| [A]: | 2WD model | 8. | Outer brake pad | 19. | Rear axle |
| [B]: | 4WD model |
 9. |
Brake pad shim : If brake pads are replaced, install new brake pad shims included in supply parts. |
 : |
26 N·m (2.7 kgf-m, 19.5 lbf-ft) |
| [C]: | With rear brake disc securing screw |
10. |
Cylinder boot : Apply small amount of rubber grease included in piston seal set of supply parts or specified brake fluid. |
 : |
60 N·m (6.1 kgf-m, 44.5 lbf-ft) |
| [D]: | Without rear brake disc securing screw |
11. |
Piston seal : Apply small amount of rubber grease included in piston seal set of supply parts or specified brake fluid. |
 : |
8.3 N·m (0.85 kgf-m, 6.5 lbf-ft) |
| 1. | Rear brake caliper |
12. |
Brake piston : Apply small amount of rubber grease included in piston seal set of supply parts or specified brake fluid. |
 : |
23 N·m (2.3 kgf-m, 17.0 lbf-ft) |
| 2. | Rear brake caliper carrier | 13. | Rear brake disc |
 : |
8.5 N·m (0.87 kgf-m, 6.5 lbf-ft) |
 3. |
Pin boot : Apply rubber grease included in pin boot set of supply parts. |
14. | Flexible hose gasket |
 : |
88 N·m (9.0 kgf-m, 65.0 lbf-ft) |
|
4. |
Slide pin with bushing : Apply rubber grease included in pin boot set of supply parts. |
15. | Rear brake flexible hose |
 : |
175 N·m (17.8 kgf-m, 129.0 lbf-ft) |
|
5. |
Slide pin with three grooves : Apply rubber grease included in pin boot set of supply parts. |
16. | Bleeder plug |
 : |
Do not reuse. |
|
6. |
Pad spring : Apply grease included in pad set of supply parts. |
17. | Rear brake disc dust cover | ||
| 7. | Inner brake pad (with wear indicator) | 18. | Rear wheel hub assembly |
