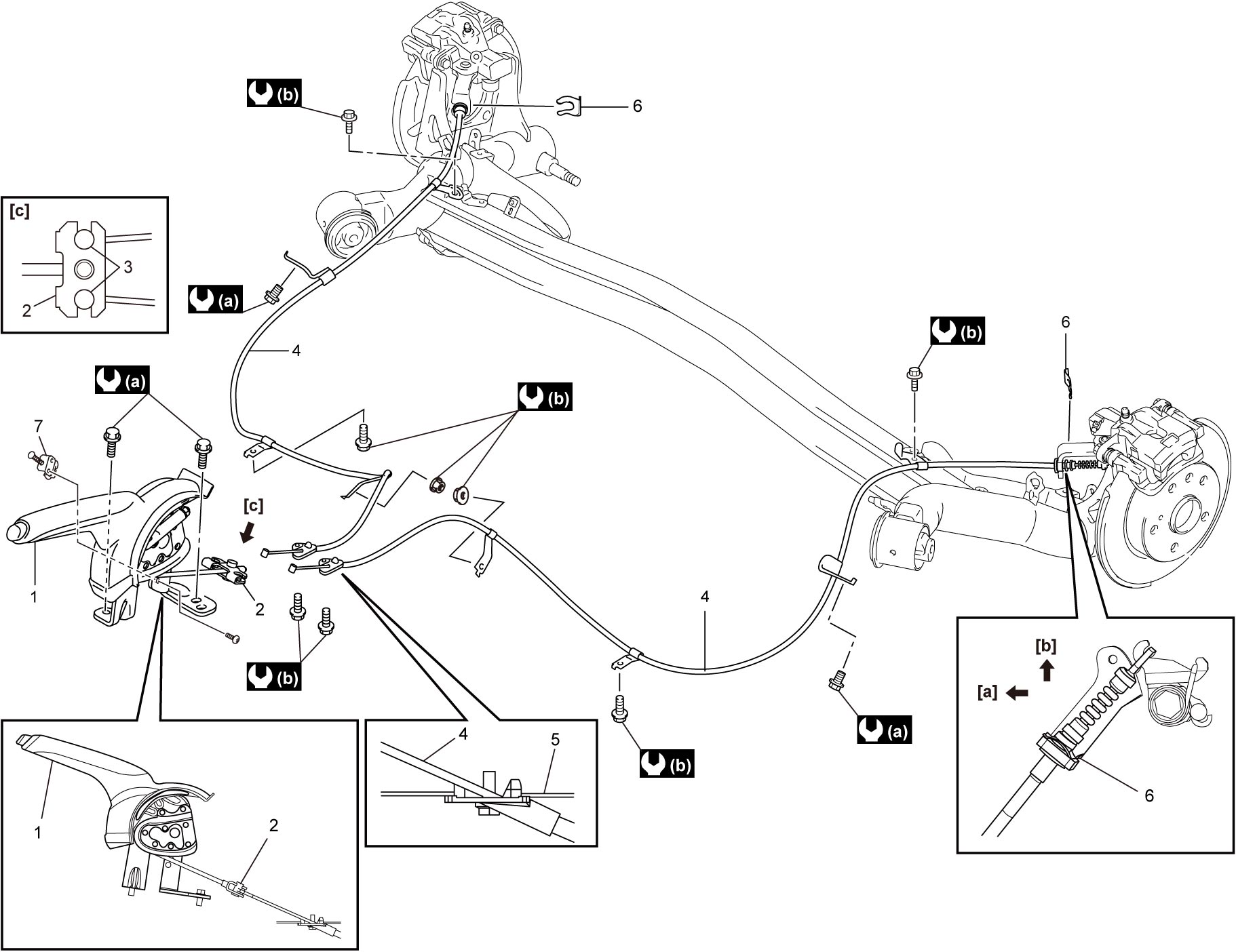

Parking Brake Components
Precautions: Precautions for Brakes · General safety (00)
| [a]: | Vehicle forward | 2. | Equalizer | 6. | E-ring |
| [b]: | Vehicle outside | 3. | Parking brake cable end (equalizer side) | 7. | Parking brake switch |
| [c]: | View [c] | 4. | Parking brake cable |
 : |
26 N·m (2.7 kgf-m, 19.5 lbf-ft) |
| 1. | Parking brake lever | 5. | Vehicle body |
 : |
11 N·m (1.1 kgf-m, 8.5 lbf-ft) |
