Gear Select Control Cable Adjustment

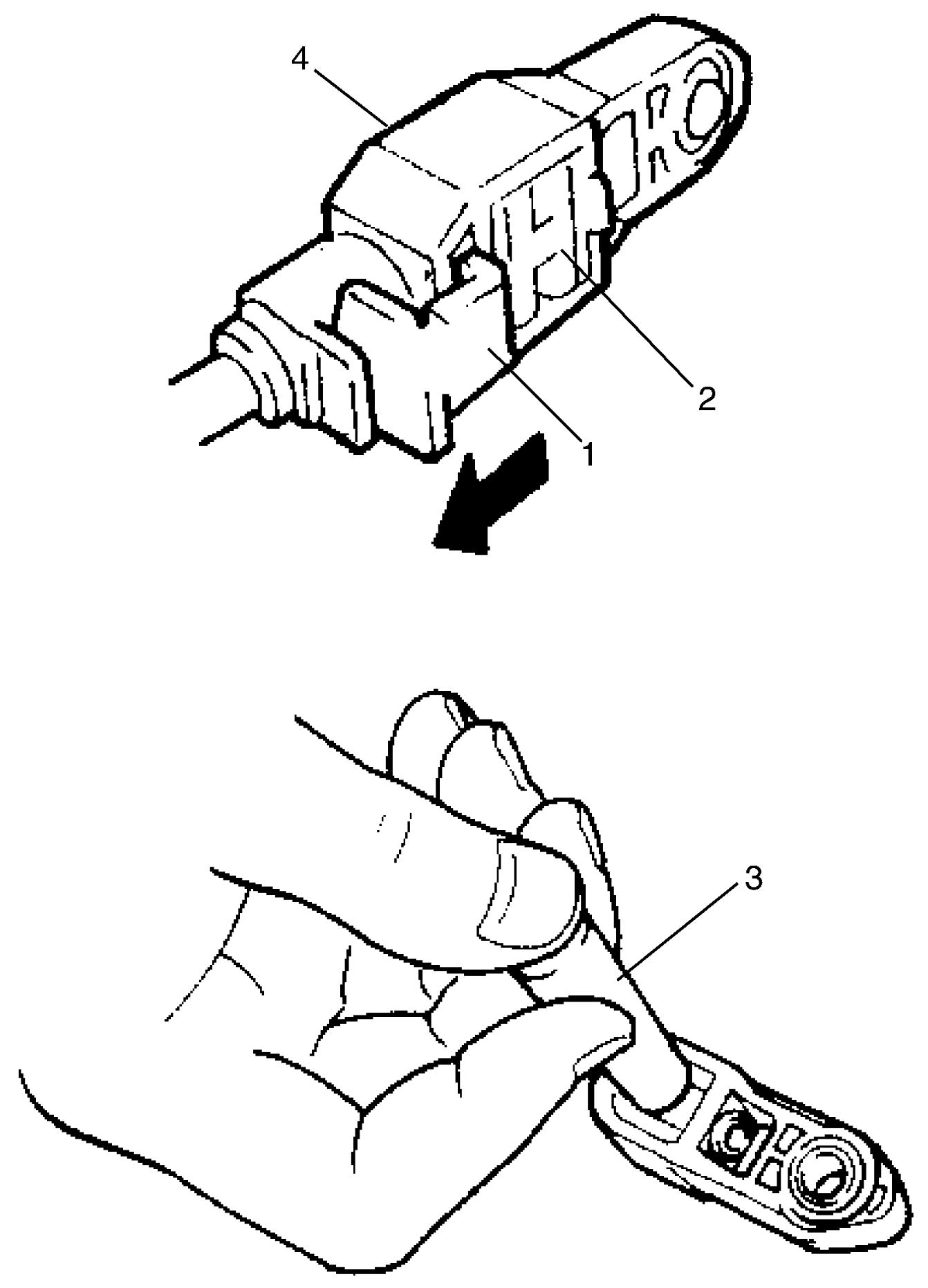

1)Release lock plate (1) which restricts moving of cable end holder (2).

2)Push cable end holder out from adjuster (4) using appropriate tool (3) to disengage cable.

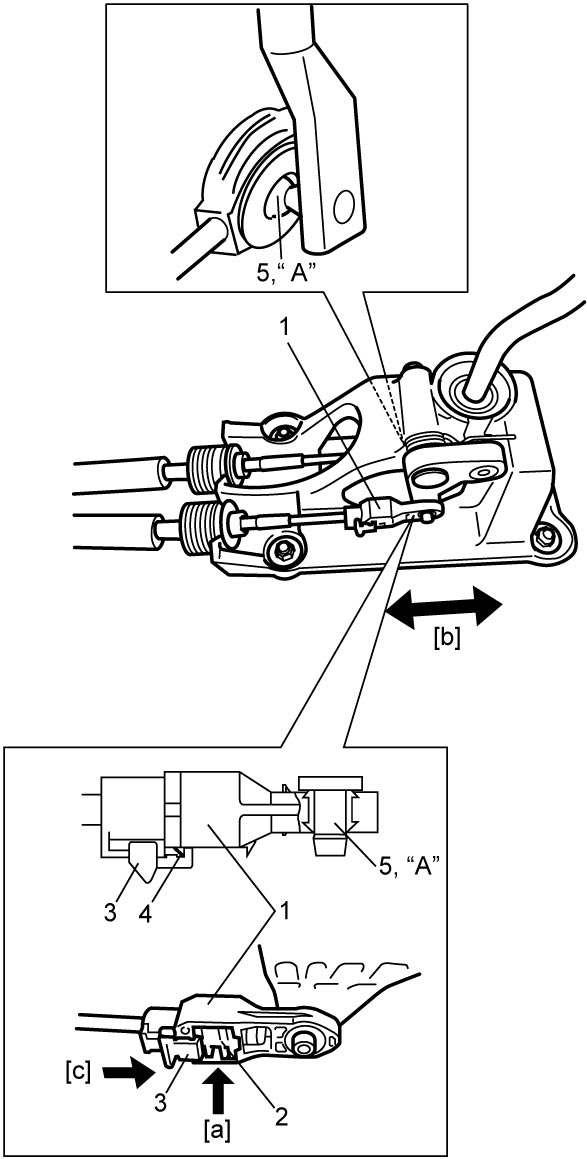

3)Apply grease to pivot (5) of gear shift control lever, and then install adjuster (1) into pin of gear shift control lever securely.

“A”: Grease 99000–25011 (SUZUKI Super Grease A)

4)Push cable end holder (2) in direction [a].

NOTE:

Do not apply force to adjuster in cable operation direction [b].

5)Slide lock plate (3) in direction [c], until it gets over the claw (4) of cable end holder.
