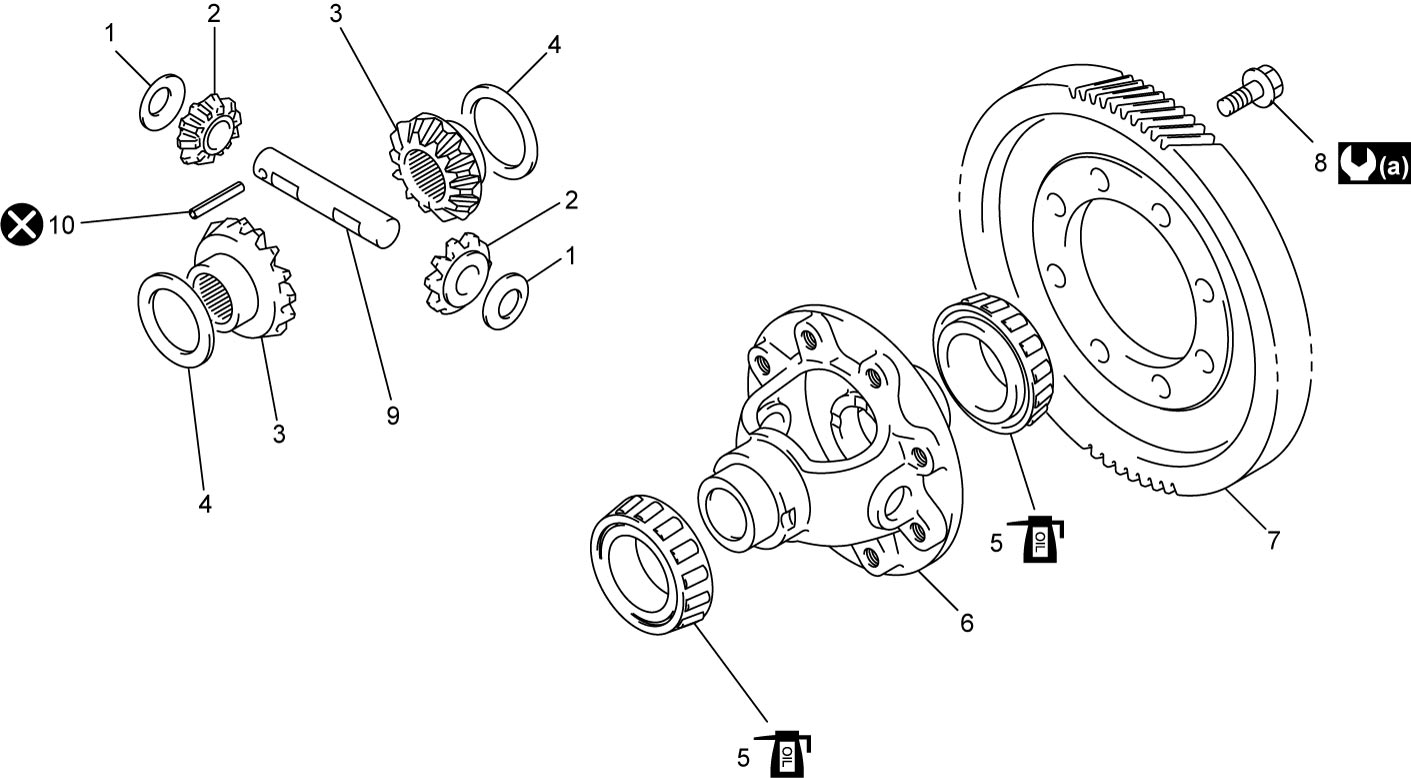

Differential Components
Precautions: General safety (00)
| 1. | Differential pinion washer | 6. | Differential case |
 : |
100 N·m (10.2 kgf-m, 74.0 lbf-ft) |
| 2. | Differential pinion | 7. | Final gear |
 : |
Apply transaxle oil. |
| 3. | Differential side gear | 8. | Final gear bolt |
 : |
Do not reuse. |
| 4. | Side gear washer | 9. | Differential pinion shaft | ||
| 5. | Differential side bearing | 10. | Differential pinion shaft pin |
