Manual Transaxle Oil Level Check

1)Hoist vehicle and check oil leakage.

2)Remove engine undercover.

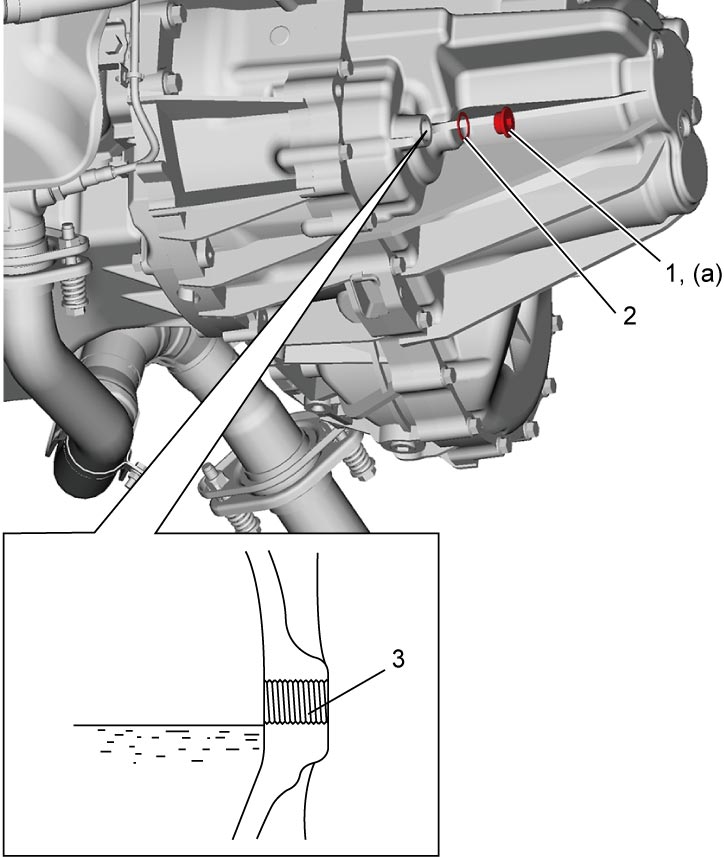

3)Remove transaxle oil level / filler plug (1) and gasket (2), and check oil flow from oil level / filler plug hole (3). If oil does not flow, pour specified oil until a little oil flows from oil level / filler plug hole.

4)Install transaxle oil level / filler plug with new gasket, and then tighten it to specified torque.
