Differential Side Oil Seal Replacement
Precautions: General safety (00)
1)Hoist vehicle and drain transaxle oil.
2)Remove front drive shafts.

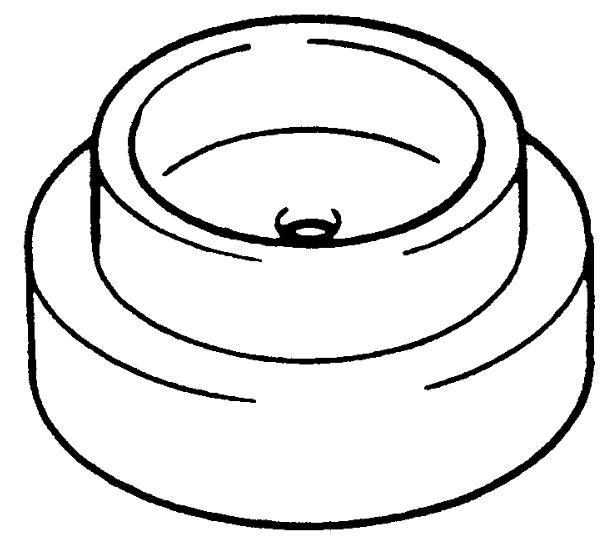

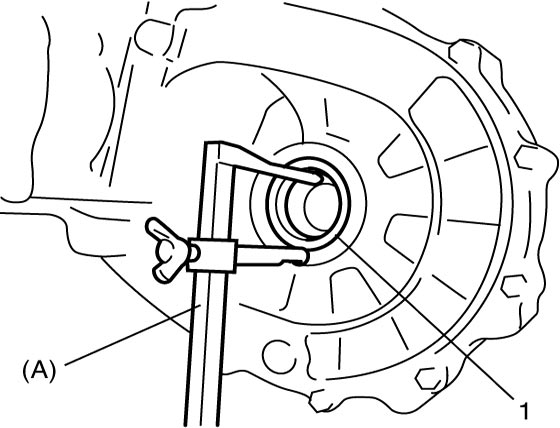

4)Install new oil seal (1) to specified position using special tool.
NOTE:
•When installing oil seal, face its spring side inward.
•Check that oil seal is installed horizontally to surface of case after installing oil seal.
•Check that oil seal is installed horizontally to surface of case after installing oil seal.

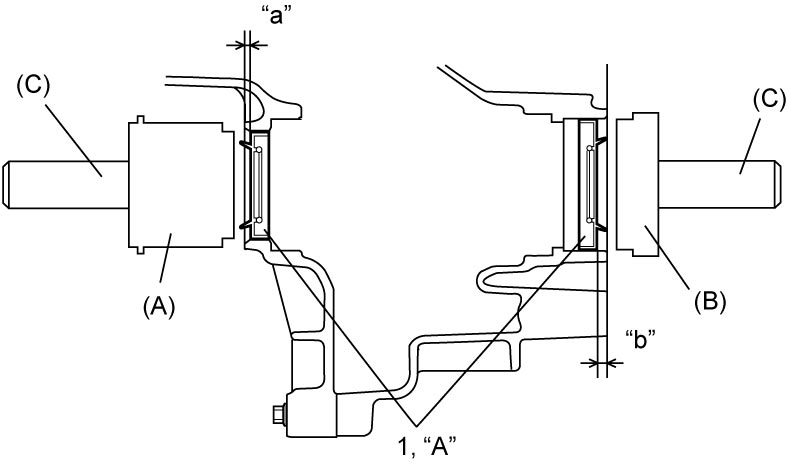

Distance from case surface to left oil seal
“a”: 1.0 – 2.0 mm (0.04 – 0.07 in.)
Distance from case surface to right oil seal
“b”: 8.5 – 9.5 mm (0.34 – 0.37 in.)
5)Apply grease to oil seal lip and at the same time check smoothness of area where drive shaft contacts oil seal.
6)Insert front drive shafts.
7)Pour transaxle oil.
