Back Up Light Switch Removal and Installation

Removal

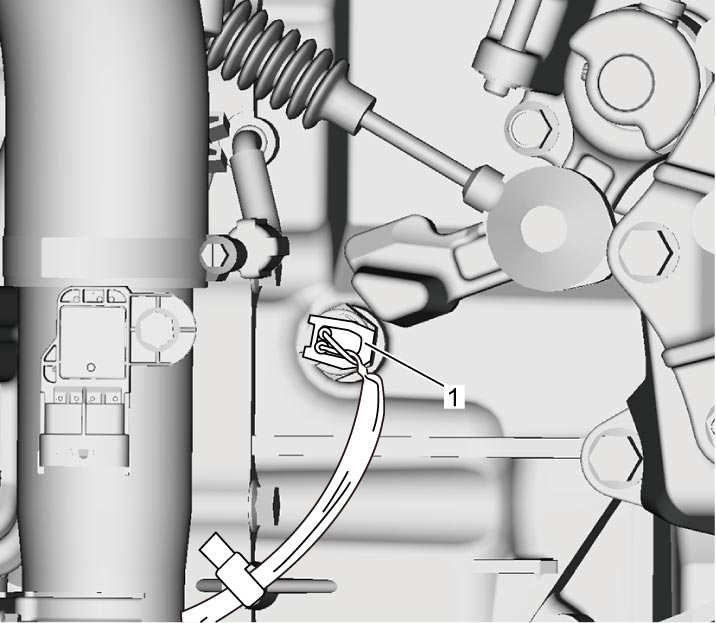

1)Disconnect back up light switch connector (1).

2)Remove back up light switch.

Installation

1)Apply transaxle oil to new O-ring (1) and tighten back up light switch (2) to specified torque.

Tightening torque

Back up light switch (a): 19 N·m (1.9 kgf-m, 14.0 lbf-ft)

2)Connect back up light switch connector.
