Neutral Position Switch Removal and Installation (If Equipped)

Removal

1)Disconnect neutral position switch connector.

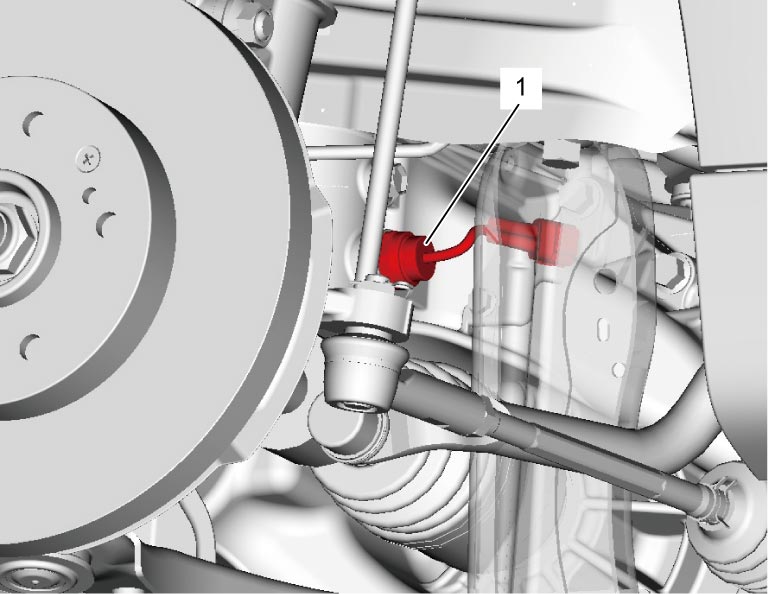

2)Remove neutral position switch (1).

Installation

Reverse removal procedure noting the following points.

•Install new neutral position switch.
•Tighten neutral position switch to specified torque.

Tightening torque

Neutral position switch: 23 N·m (2.3 kgf-m, 17.0 lbf-ft)
