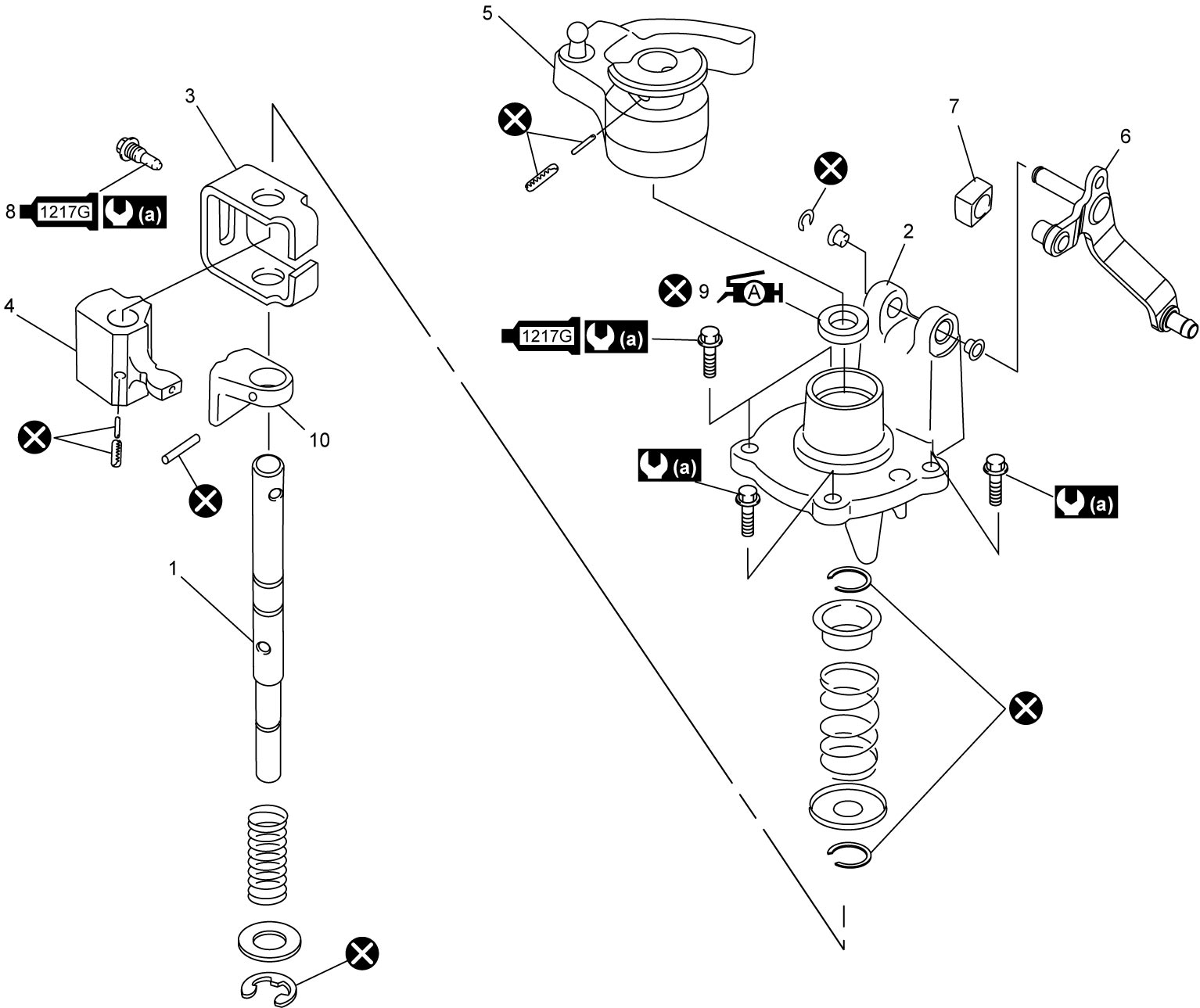

Gear Shift and Select Shaft Assembly Components
Precautions: General safety (00)
| 1. | Gear shift & select shaft | 5. | Shift cable lever |
 9. |
Oil seal : Apply grease 99000-25011 to oil seal lip. |
| 2. | Guide case | 6. | Select cable lever | 10. | Gear shift cam (if equipped) |
| 3. | Gear shift interlock plate | 7. | Select lever bushing |
 : |
23 N·m (2.3 kgf-m, 17.0 lbf-ft) |
| 4. | Gear shift & select lever |
 8. |
Gear shift interlock bolt : Apply sealant 99000-31260 to thread part. |
 : |
Do not reuse. |
