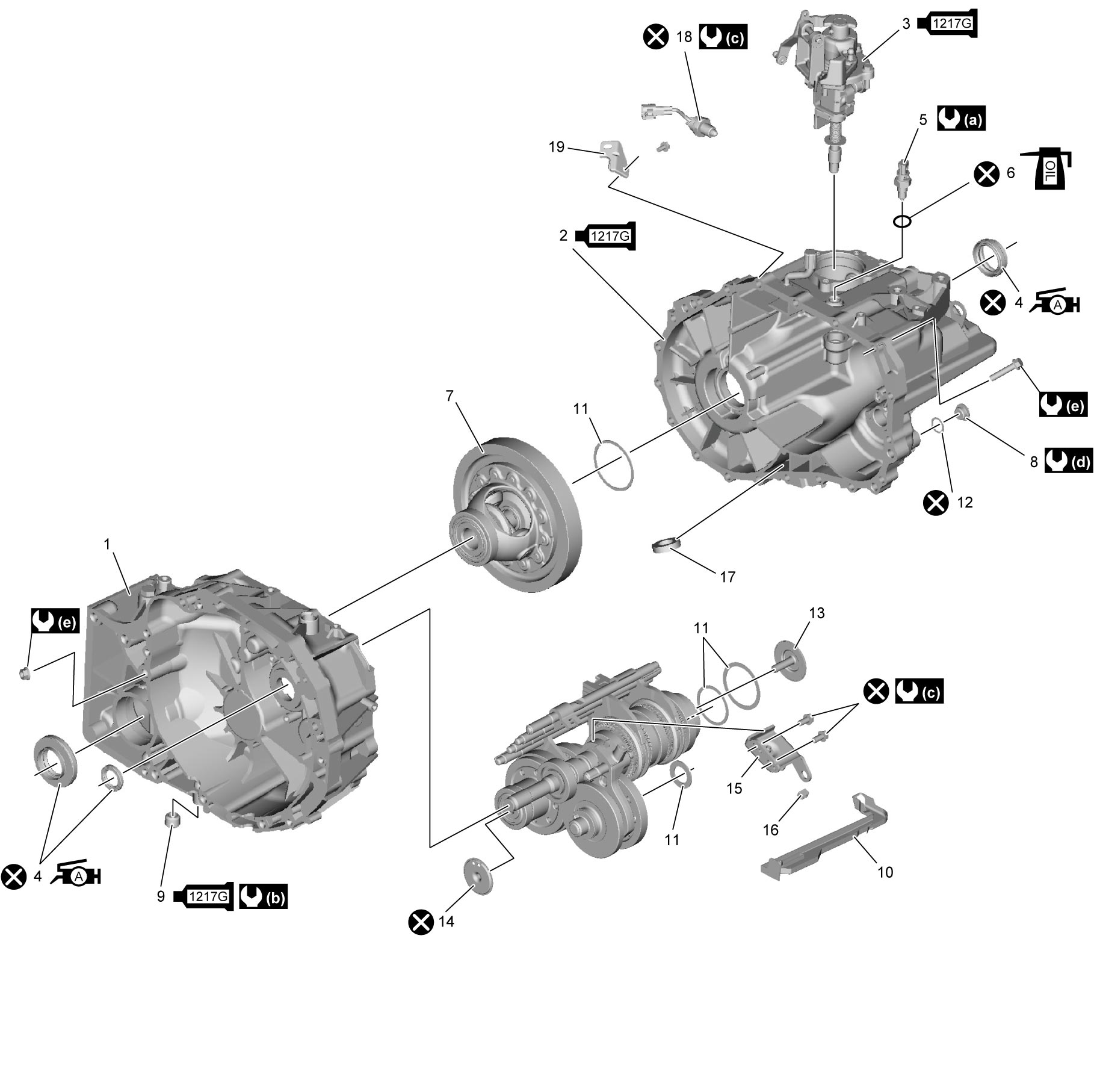

Manual Transaxle Assembly Components
Precautions: General safety (00)
| 1. | Transaxle right case | 10. | Oil gutter | 19. | Neutral position switch bracket (if equipped) |
 2. |
Transaxle left case : Apply sealant 99000-31260 referring to Manual Transaxle Assembly Disassembly and Reassembly:K14C-6M/T Model. |
11. | Shim |
 : |
19 N·m (1.9 kgf-m, 14.0 lbf-ft) |
|
3. |
Gear shift & select shaft assembly : Apply sealant 99000-31260 referring to Gear Shift and Select Shaft Assembly Removal and Installation:K14C-6M/T Model. |
12. | Gasket |
 : |
21 N·m (2.1 kgf-m, 15.5 lbf-ft) |
 4. |
Oil seal : Apply grease 99000-25011 to oil seal lip. |
13. | Input shaft oil channel |
 : |
23 N·m (2.3 kgf-m, 17.0 lbf-ft) |
| 5. | Back up light switch | 14. | Countershaft oil channel |
 : |
27 N·m (2.8 kgf-m, 20.0 lbf-ft) |
| 6. | O-ring | 15. | Reverse gear shift lever |
 : |
55 N·m (5.6 kgf-m, 40.5 lbf-ft) |
| 7. | Differential assembly | 16. | Shift lever cap |
 : |
Do not reuse. |
| 8. | Transaxle oil level / filler plug | 17. | Oil cleaner magnet |
 : |
Apply transaxle oil. |
|
9. |
Transaxle oil drain plug : Apply sealant 99000-31260 to all around thread part of plug. |
18. | Neutral position switch (if equipped) |
