Manual Transaxle Oil Level Check

1)Hoist vehicle and check oil leakage.

2)Remove engine undercover.

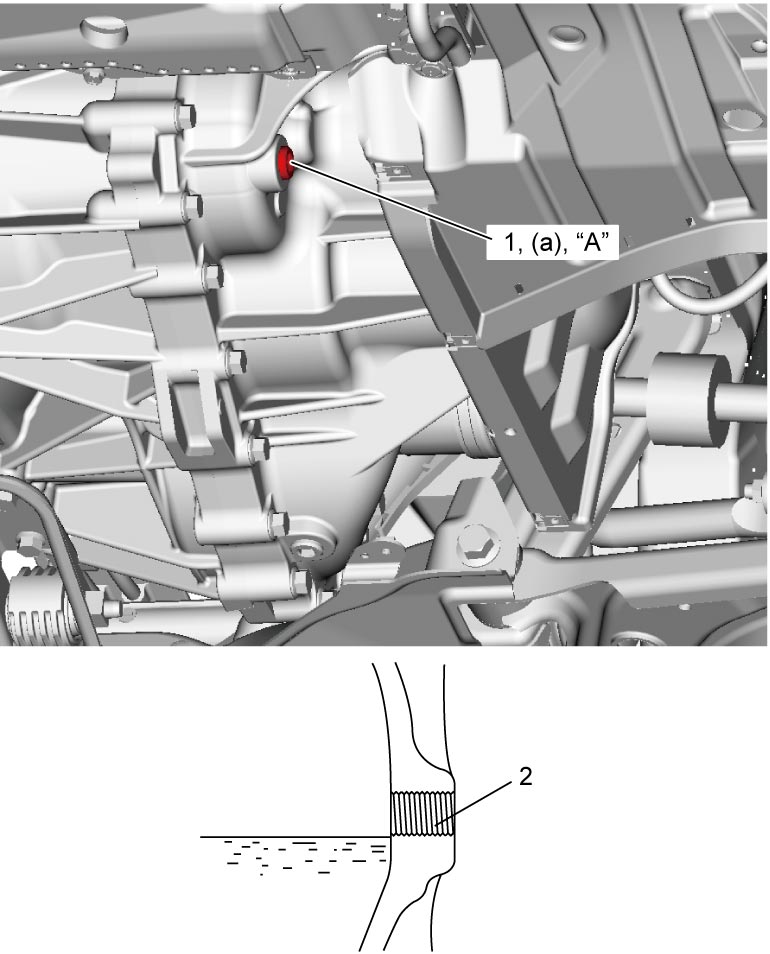

3)Remove oil level / filler plug (1) and check oil level reaches lower end of oil level / filler plug hole (2).
If oil is insufficient, pour specified oil up to plug hole.

4)Apply sealant to thread of level / filler plug, and then tighten it to specified torque.
