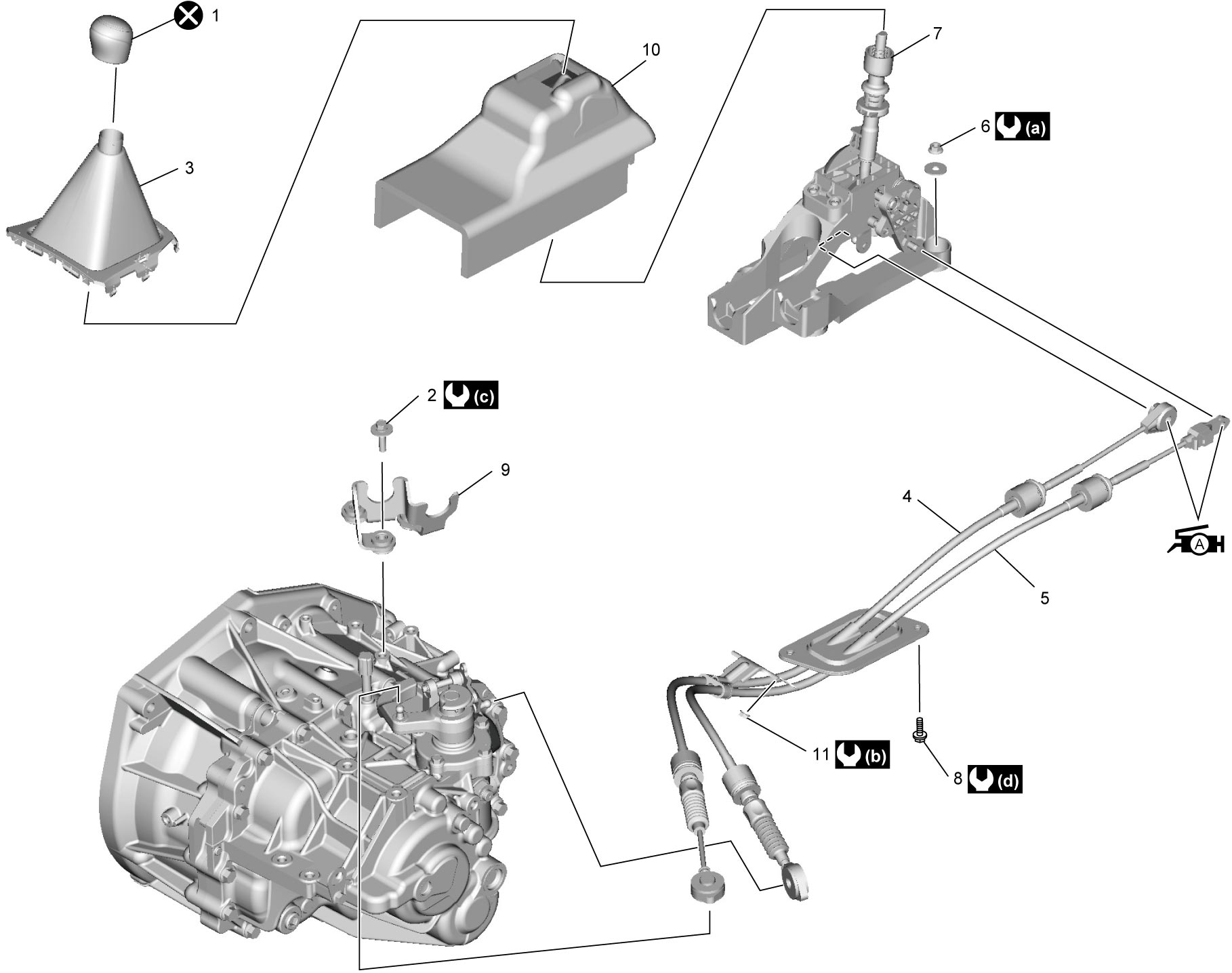

Gear Shift Control Lever and Cable Components
Precautions: General safety (00)
| 1. | Gear shift control lever knob | 7. | Gear shift control lever assembly |
 : |
10 N·m (1.0 kgf-m, 7.5 lbf-ft) |
| 2. | Cable bracket bolt | 8. | Cable grommet bolt |
 : |
21 N·m (2.1 kgf-m, 15.5 lbf-ft) |
| 3. | Gear shift lever boot | 9. | Cable bracket |
 : |
5.5 N·m (0.56 kgf-m, 4.0 lbf-ft) |
 4. |
Gear shift control cable : Apply grease 99000-25011 to cable end. |
10. | Shift lever cover |
 : |
Do not reuse. |
|
5. |
Gear select control cable : Apply grease 99000-25011 to cable end. |
11. | Cable nut | ||
| 6. | Gear shift control lever assembly mounting nut |
 : |
13 N·m (1.3 kgf-m, 9.5 lbf-ft) |
