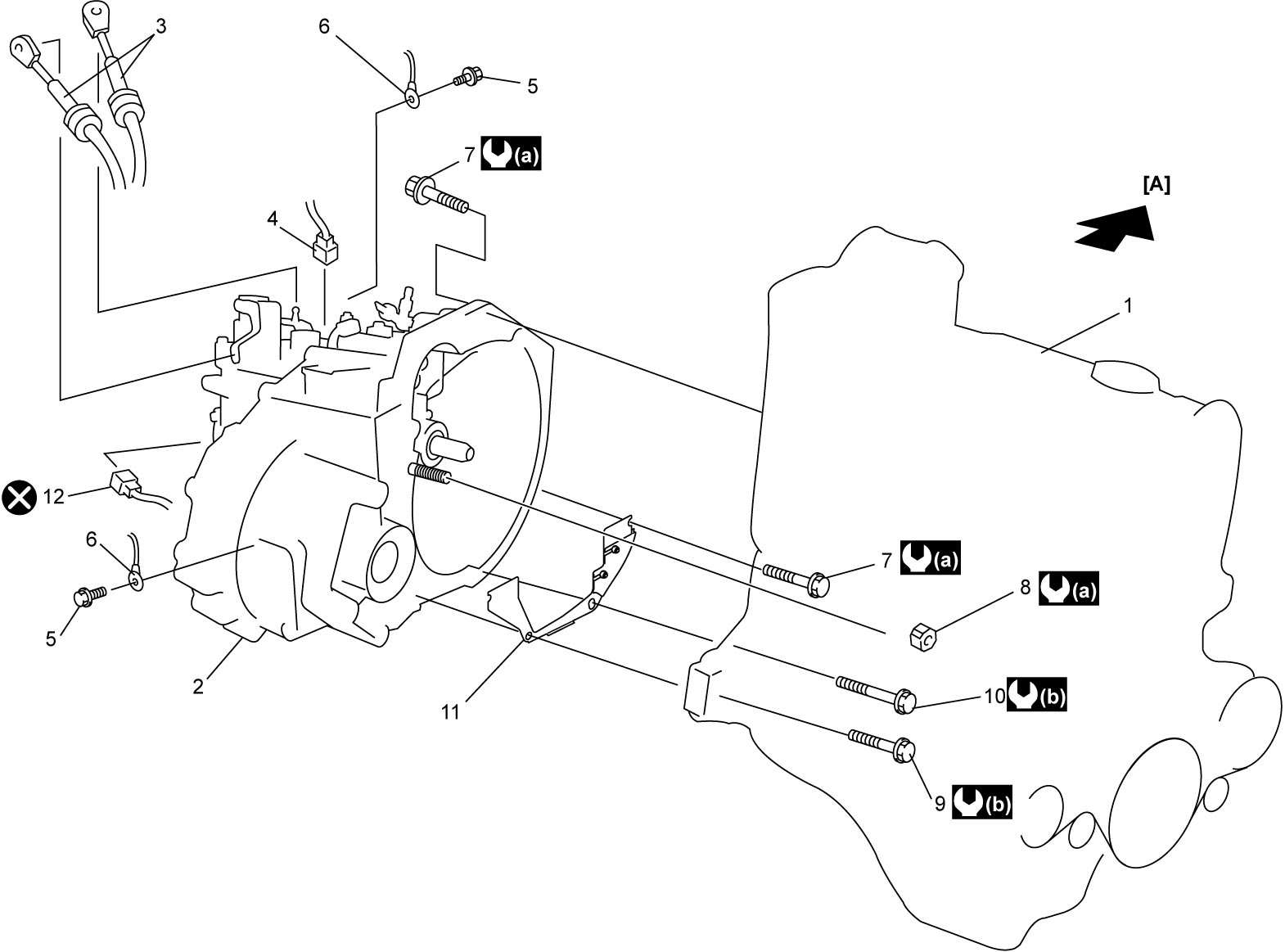

Manual Transaxle Unit Components
Precautions: General safety (00)
| [A]: | Forward | 6. | Ground cable | 12. | Neutral position switch connector (if equipped) |
| 1. | Engine | 7. | Transaxle to engine bolt |
 : |
85 N·m (8.5 kgf-m, 61.5 lbf-ft) |
| 2. | Transaxle | 8. | Transaxle to engine nut |
 : |
55 N·m (5.5 kgf-m, 40.0 lbf-ft) |
| 3. | Gear shift control cables | 9. | Stiffener bolt No.1 |
 : |
Do not reuse. |
| 4. | Back up light switch connector | 10. | Stiffener bolt No.2 | ||
| 5. | Ground cable bolt | 11. | Clutch housing lower plate |
