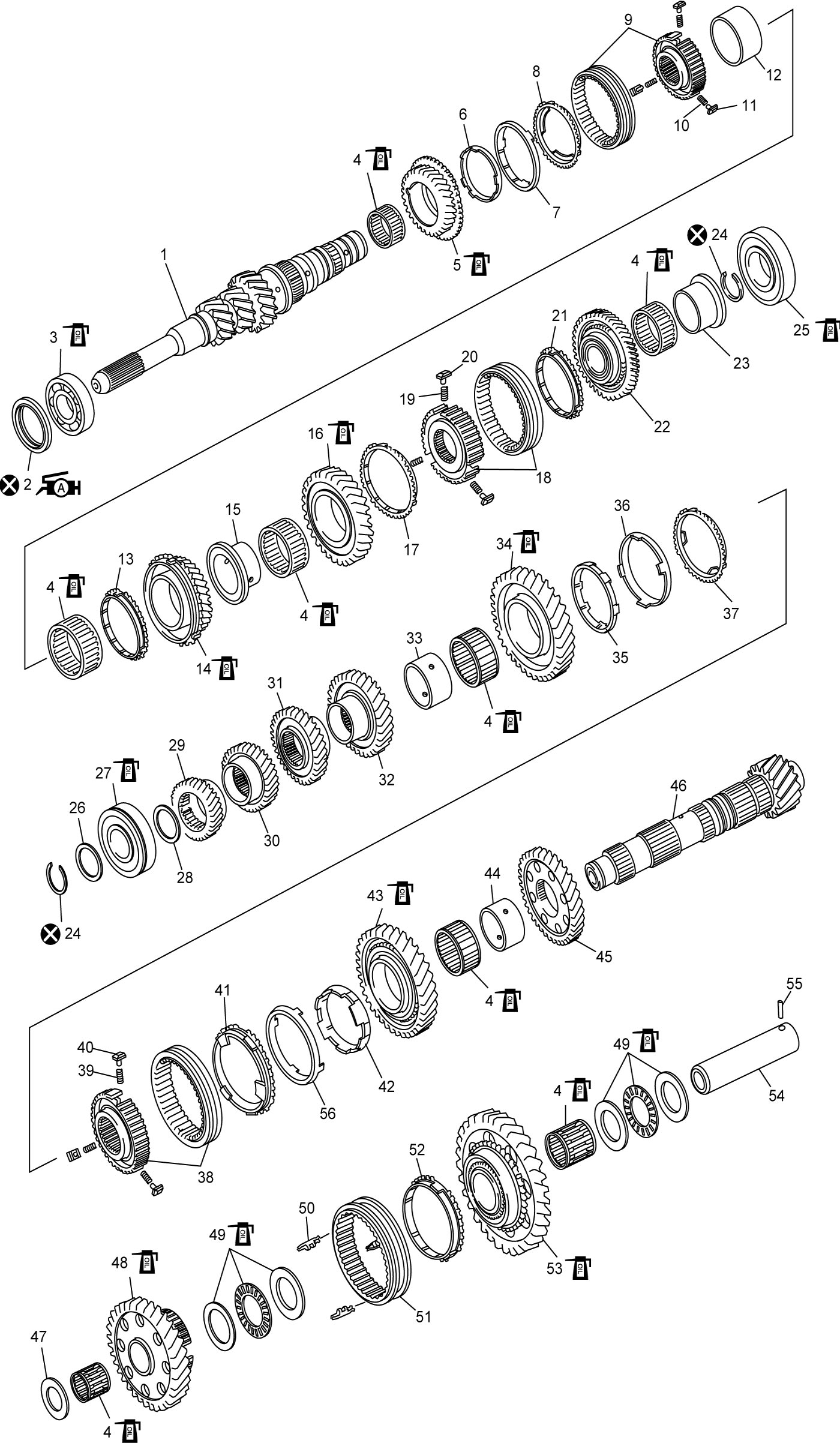

Input Shaft, Countershaft and Reverse Gear Components

1.	Input shaft	21.	6th gear synchronizer ring	41.	1st gear synchronizer outer ring
2.	Oil seal : Apply grease 99000-25011 to oil seal lip.	22.	Input shaft 6th gear	42.	1st gear synchronizer inner ring
3.	Input shaft right bearing	23.	Input shaft 6th gear spacer	43.	1st gear
4.	Needle bearing	24.	Circlip	44.	Countershaft 1st gear spacer
5.	Input shaft 3rd gear	25.	Input shaft left bearing	45.	Countershaft reverse gear
6.	3rd gear synchronizer inner ring	26.	Washer	46.	Countershaft
7.	3rd gear synchronizer center cone	27.	Countershaft left bearing	47.	Spacer
8.	3rd gear synchronizer outer ring	28.	Shim	48.	Reverse idler left gear
9.	High speed synchronizer sleeve & hub	29.	Countershaft 6th gear	49.	Reverse gear thrust bearing set
10.	High speed synchronizer spring	30.	Countershaft 5th gear	50.	Reverse gear synchronizer key
11.	High speed synchronizer key	31.	Countershaft 4th gear	51.	Reverse gear synchronizer sleeve
12.	Input shaft 4th gear spacer	32.	Countershaft 3rd gear	52.	Reverse gear synchronizer ring
13.	4th gear synchronizer ring	33.	Countershaft 2nd gear spacer	53.	Reverse idler right gear
14.	Input shaft 4th gear	34.	Countershaft 2nd gear	54.	Reverse gear shaft
15.	Input shaft 5th gear spacer	35.	2nd gear synchronizer inner ring	55.	Reverse gear shaft pin
16.	Input shaft 5th gear	36.	2nd gear synchronizer center cone	56.	1st gear synchronizer center cone
17.	5th gear synchronizer ring	37.	2nd gear synchronizer outer ring	:	Apply transaxle oil.
18.	5th & 6th gear synchronizer sleeve & hub	38.	Low speed synchronizer sleeve & hub	:	Do not reuse.
19.	5th & 6th gear synchronizer spring	39.	Low speed synchronizer spring
20.	5th & 6th gear synchronizer key	40.	Low speed synchronizer key
