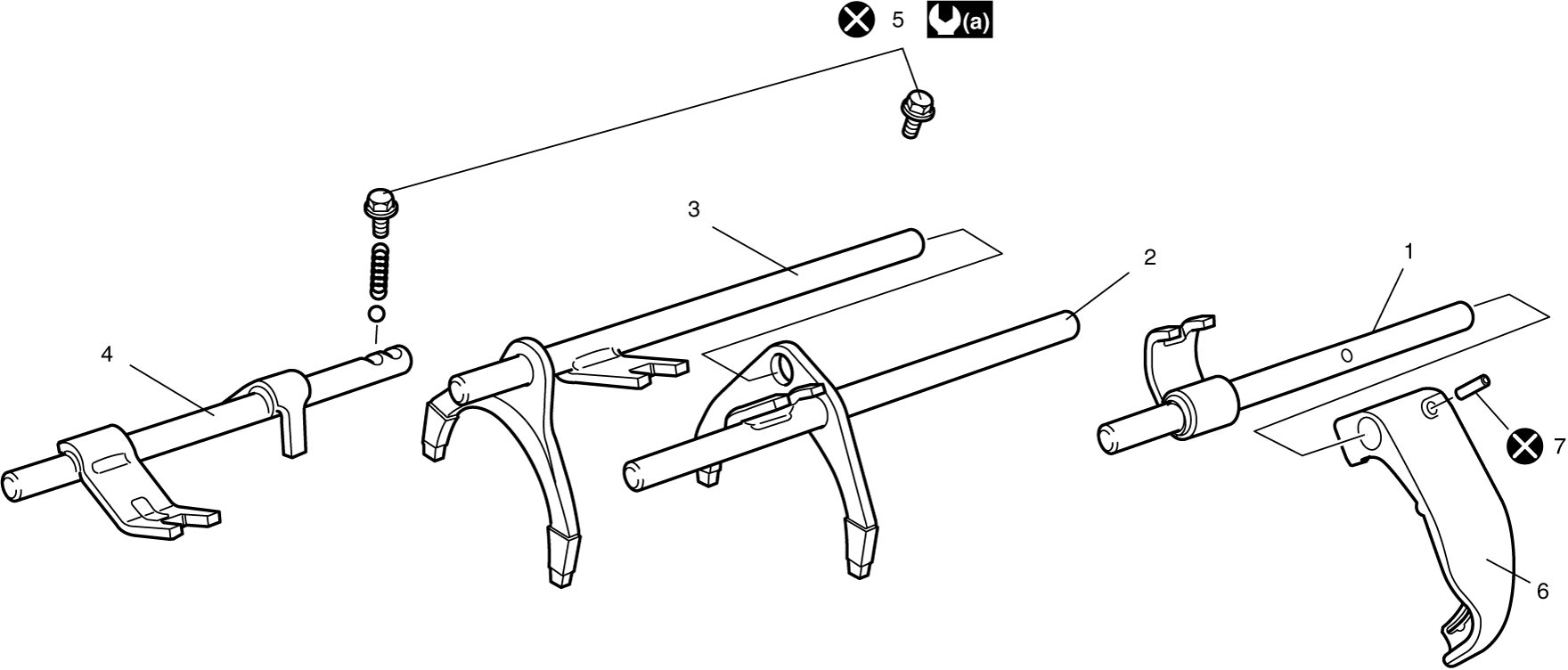

Gear Shift Shaft Components
Precautions: General safety (00)
| 1. | Low speed gear shift shaft | 4. | Reverse gear shift shaft | 7. | Spring pin |
| 2. | High speed gear shift shaft | 5. | Gear shift locating bolt |
 : |
15 N·m (1.5 kgf-m, 11.0 lbf-ft) |
| 3. | 5th & 6th gear shift shaft | 6. | Low speed gear shift fork |
 : |
Do not reuse. |
