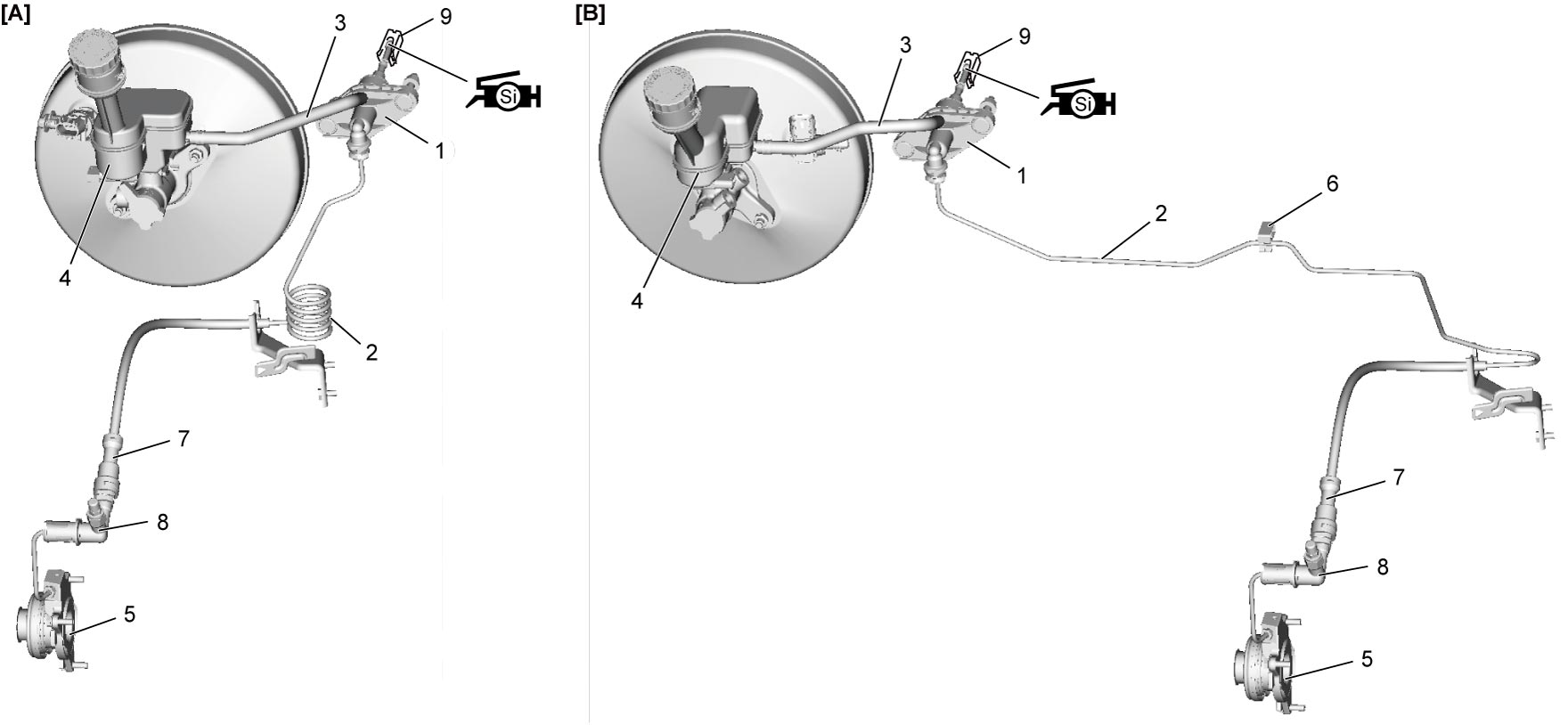

Clutch Fluid Pipe and Hose Components
Precautions: General safety (00)
| [A]: | LHD model | 3. | Clutch reservoir hose | 7. | Clutch fluid damper |
| [B]: | RHD model | 4. | Brake master cylinder reservoir | 8. | Clutch pipe joint |
 1. |
Clutch master cylinder : Apply grease 99000-25100 to push rod tip. |
5. | Clutch operating cylinder assembly | 9. | Pressure pad |
| 2. | Clutch fluid pipe | 6. | Clamp |
