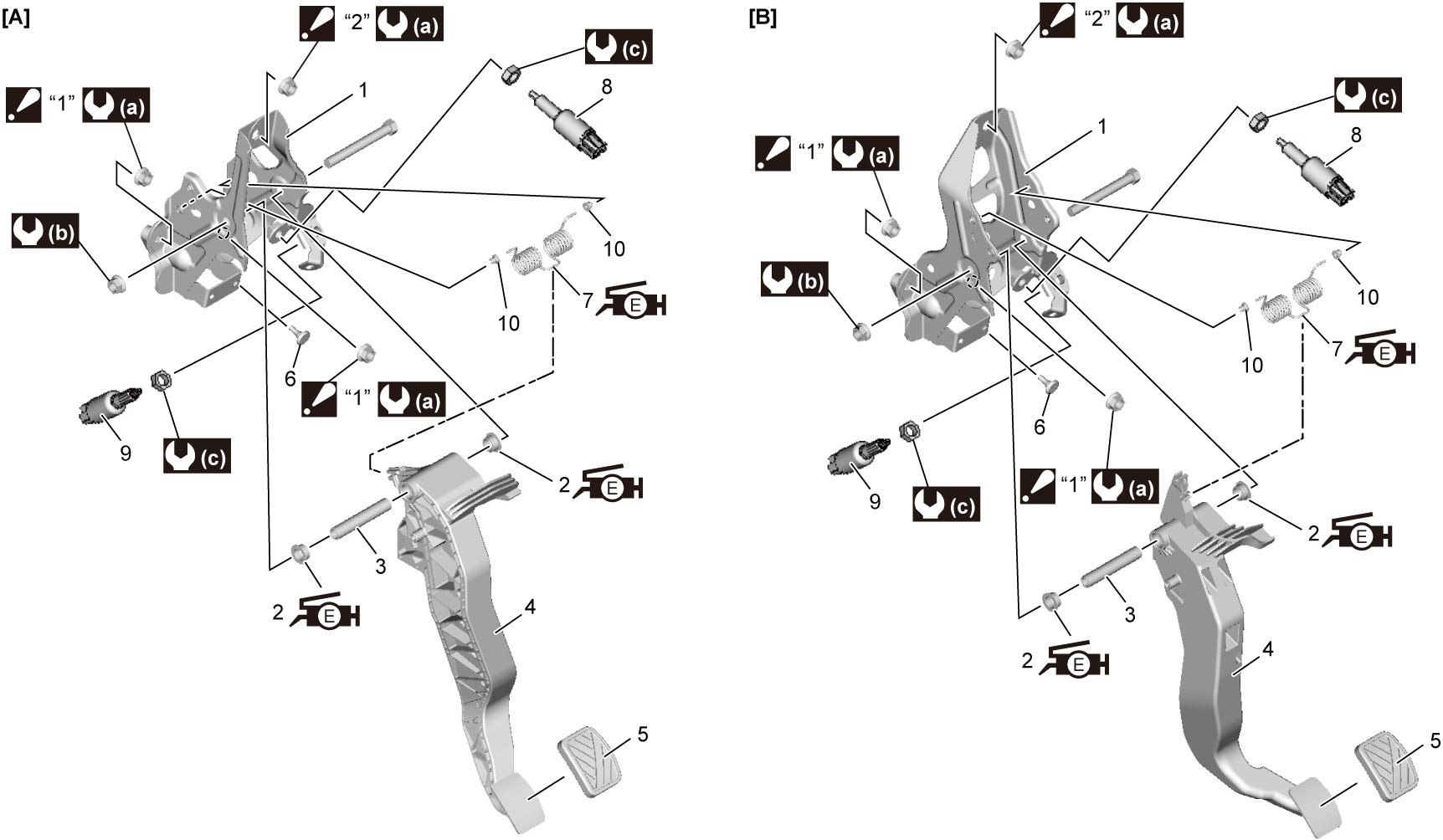

Clutch Pedal Assembly Components
Precautions: General safety (00)
| [A]: | LHD model |
 7. |
Clutch pedal spring : Apply grease 99000-25050 to all surface of spring. |
| [B]: | RHD model | 8. | Clutch pedal position (CPP) No.2 switch |
| 1. | Clutch pedal bracket assembly | 9. | Clutch pedal position (CPP) No.1 switch |
|
2. |
Pedal boss bushing : Apply grease 99000-25050 to all surface of bushing. |
10. | Spring bushing |
| 3. | Pedal shaft spacer |
 a, b: |
Tightening order: “1” → “2” |
| 4. | Clutch pedal arm |
 : |
13 N·m (1.3 kgf-m, 9.5 lbf-ft) |
| 5. | Pedal pad |
 : |
23 N·m (2.3 kgf-m, 17.0 lbf-ft) |
| 6. | Clutch pedal stop cushion |
 : |
7.5 N·m (0.76 kgf-m, 5.5 lbf-ft) |
