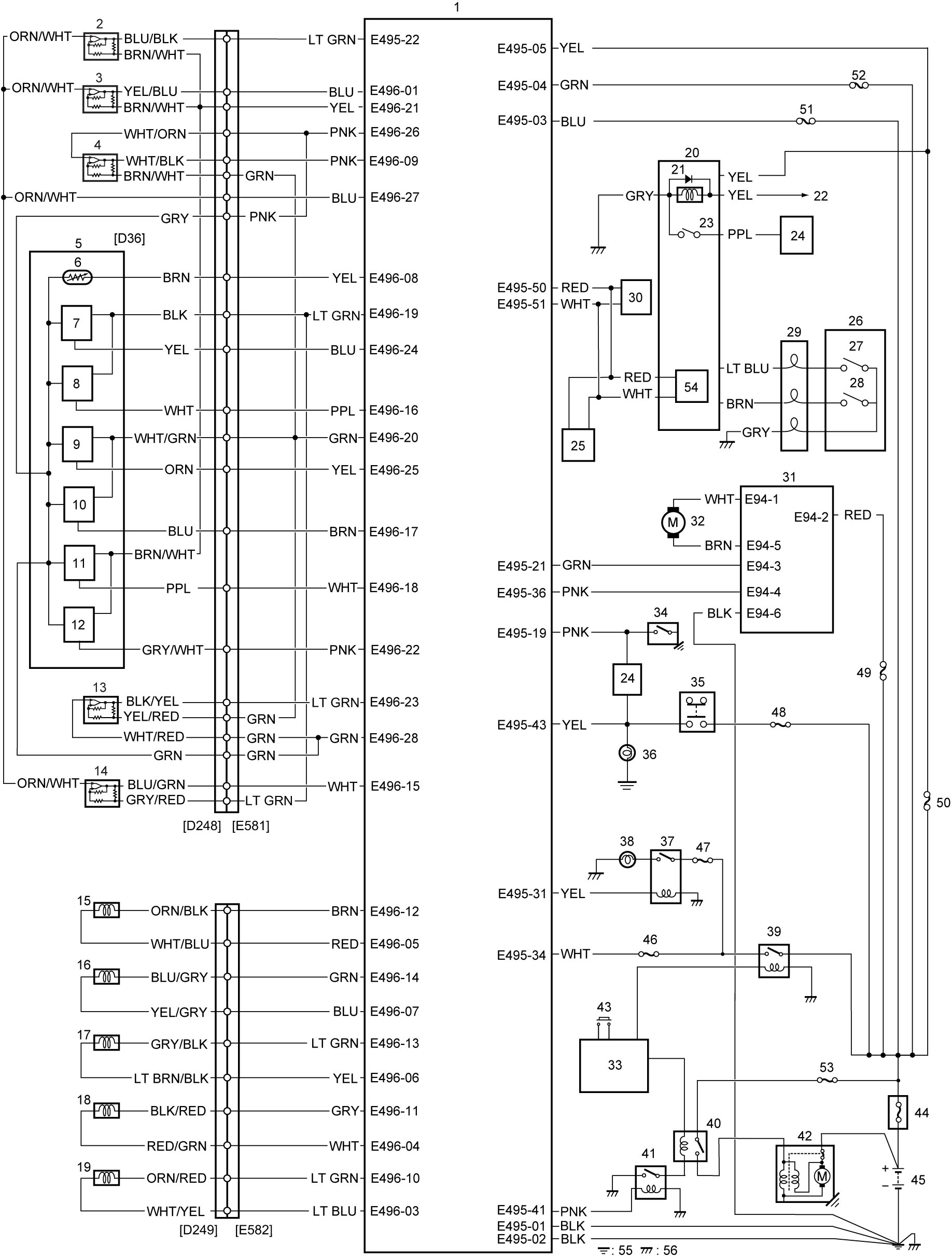

TCM Circuit Diagram
Precautions: Precautions for Diagnosing Trouble · Precautions for Disassembly and Reassembly · Precautions for Transmission / Transaxle · General safety (00)

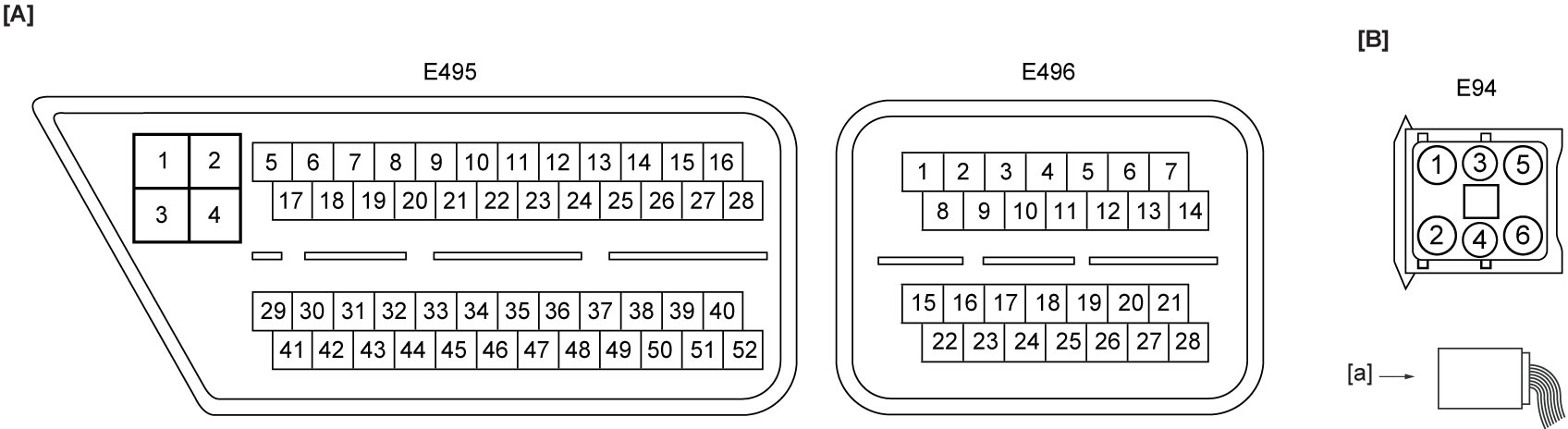

| [A]: | TCM connector (View: [a]) | 19. | Gear select solenoid valve | 38. | Back up light |
| [B]: | Smart drive unit connector (View: [a]) | 20. | Select lever | 39. | IG1 relay |
| 1. | TCM | 21. | Shift lock solenoid | 40. | Starting motor control relay |
| 2. | Parking position sensor | 22. | To ignition switch | 41. | ST3 relay |
| 3. | Line pressure sensor | 23. | P position switch | 42. | Starting motor |
| 4. | Even gear clutch pressure sensor | 24. | BCM | 43. | Engine switch |
| 5. | Sensor module | 25. | To other control modules connected by CAN | 44. | Main fuse box |
| 6. | Sensor module temperature sensor | 26. | Shift paddles | 45. | Battery |
| 7. | 1st & 3rd gear position sensor | 27. | Paddle-up switch | 46. | “IG1” fuse |
| 8. | 5th & reverse gear position sensor | 28. | Paddle-down switch | 47. | “BACK” fuse |
| 9. | 6th gear position sensor | 29. | Contact coil | 48. | “STOP” fuse |
| 10. | 2nd & 4th gear position sensor | 30. | ECM | 49. | “T/M PUMP” fuse |
| 11. | Even gear clutch speed sensor | 31. | Smart drive unit | 50. | “T/M3” fuse |
| 12. | Odd gear clutch speed sensor | 32. | Electric motor | 51. | “T/M4” fuse |
| 13. | Gear select position sensor | 33. | Keyless start control module | 52. | “T/M5” fuse |
| 14. | Odd gear clutch position sensor | 34. | Driver side front door switch | 53. | “ST” fuse |
| 15. | Odd gear clutch solenoid valve | 35. | Brake light switch | 54. | CAN driver |
| 16. | Even gear clutch solenoid valve | 36. | Brake light | 55. | Engine ground |
| 17. | Gear shift solenoid valve No.1 | 37. | Back up light relay | 56. | Body ground |
| 18. | Gear shift solenoid valve No.2 |
“E495” connector
| Terminal No. | Wire color | Circuit |
|---|---|---|
| E495-1 | BLK | TCM ground circuit 1 |
| E495-2 | BLK | TCM ground circuit 2 |
| E495-3 | BLU | TCM power supply circuit 1 |
| E495-4 | GRN | TCM power supply circuit 2 |
| E495-5 | YEL | TCM power supply circuit 3 |
| E495-6 | — | — |
| E495-7 | — | — |
| E495-8 | — | — |
| E495-9 | — | — |
| E495-10 | — | — |
| E495-11 | — | — |
| E495-12 | — | — |
| E495-13 | — | — |
| E495-14 | — | — |
| E495-15 | — | — |
| E495-16 | — | — |
| E495-17 | — | — |
| E495-18 | — | — |
| E495-19 | PNK | Driver side front door switch signal circuit |
| E495-20 | — | — |
| E495-21 | GRN | Smart drive unit signal circuit 1 |
| E495-22 | LT GRN | Parking position sensor signal circuit |
| E495-23 | — | — |
| E495-24 | — | — |
| E495-25 | — | — |
| E495-26 | — | — |
| E495-27 | — | — |
| E495-28 | — | — |
| E495-29 | — | — |
| E495-30 | — | — |
| E495-31 | YEL | Back up light relay drive circuit |
| E495-32 | — | — |
| E495-33 | — | — |
| E495-34 | WHT | Ignition ON signal circuit |
| E495-35 | — | — |
| E495-36 | PNK | Smart drive unit signal circuit 2 |
| E495-37 | — | — |
| E495-38 | — | — |
| E495-39 | — | — |
| E495-40 | — | — |
| E495-41 | PNK | ST3 relay drive circuit |
| E495-42 | — | — |
| E495-43 | YEL | Brake light switch signal circuit (normal open) |
| E495-44 | — | — |
| E495-45 | — | — |
| E495-46 | — | — |
| E495-47 | — | — |
| E495-48 | — | — |
| E495-49 | — | — |
| E495-50 | RED | CAN communication (High) |
| E495-51 | WHT | CAN communication (Low) |
| E495-52 | — | — |
“E496” connector
| Terminal No. | Wire color | Circuit |
|---|---|---|
| E496-1 | BLU | Line pressure sensor signal circuit |
| E496-2 | — | — |
| E496-3 | LT BLU | Gear select solenoid valve ground circuit |
| E496-4 | WHT | Gear shift solenoid valve No.2 ground circuit |
| E496-5 | RED | Odd gear clutch solenoid valve ground circuit |
| E496-6 | YEL | Gear shift solenoid valve No.1 ground circuit |
| E496-7 | BLU | Even gear clutch solenoid valve ground circuit |
| E496-8 | YEL | Sensor module temperature sensor power supply circuit |
| E496-9 | PNK | Even gear clutch pressure sensor signal circuit |
| E496-10 | LT GRN | Gear select solenoid valve drive circuit |
| E496-11 | GRY | Gear shift solenoid valve No.2 drive circuit |
| E496-12 | BRN | Odd gear clutch solenoid valve drive circuit |
| E496-13 | LT GRN | Gear shift solenoid valve No.1 drive circuit |
| E496-14 | GRN | Even gear clutch solenoid valve drive circuit |
| E496-15 | WHT | Odd gear clutch position sensor signal circuit |
| E496-16 | PPL | 5th & reverse gear position sensor signal circuit |
| E496-17 | BRN | 2nd & 4th gear position sensor signal circuit |
| E496-18 | WHT | Even gear clutch speed sensor signal circuit |
| E496-19 | LT GRN | Sensor power supply circuit 1 |
| E496-20 | GRN | Sensor power supply circuit 2 |
| E496-21 | YEL | Sensor power supply circuit 3 |
| E496-22 | PNK | Odd gear clutch speed sensor signal circuit |
| E496-23 | LT GRN | Gear select position sensor signal circuit |
| E496-24 | BLU | 1st & 3rd gear position sensor signal circuit |
| E496-25 | YEL | 6th gear position sensor signal circuit |
| E496-26 | PNK | Sensor ground circuit 1 |
| E496-27 | BLU | Sensor ground circuit 2 |
| E496-28 | GRN | Sensor ground circuit 3 |
“E94” connector
| Terminal No. | Wire color | Circuit |
|---|---|---|
| E94-1 | WHT | Electric motor power supply circuit |
| E94-2 | RED | Smart drive unit power supply circuit |
| E94-3 | GRN | Smart drive unit signal circuit 1 |
| E94-4 | PNK | Smart drive unit signal circuit 2 |
| E94-5 | BRN | Electric motor ground circuit |
| E94-6 | BLK | Smart drive unit ground circuit |
