Twin Clutch System Component Location
Precautions: Precautions for Diagnosing Trouble · Precautions for Disassembly and Reassembly · Precautions for Transmission / Transaxle · General safety (00)
NOTE:
The figure shows LHD. For RHD, parts with (*) are installed at the opposite side.

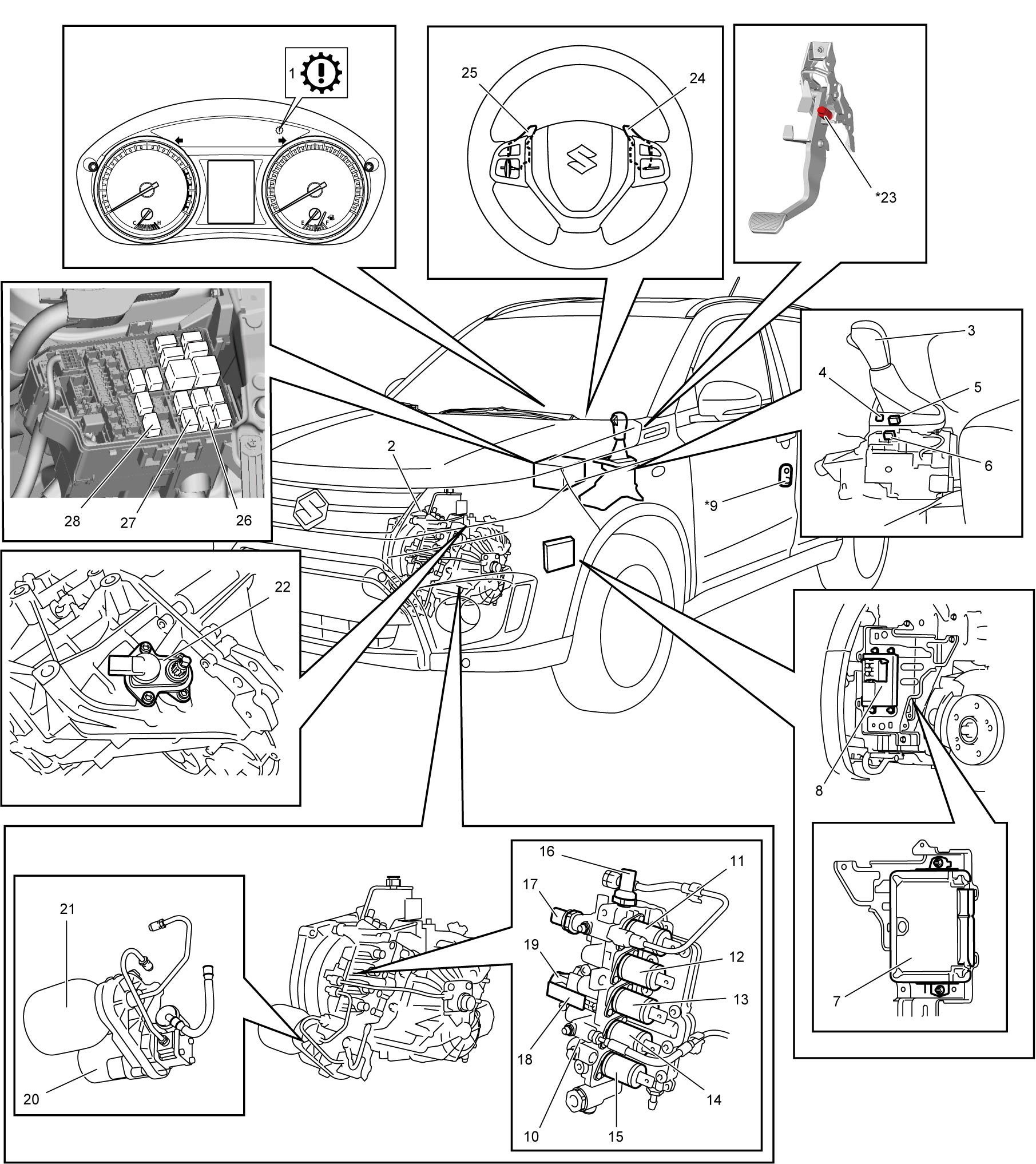

| 1. | Transmission warning light | 11. | Even gear clutch solenoid valve | 21. | Accumulator |
| 2. | Twin clutch system unit | 12. | Gear select solenoid valve | 22. | Parking position sensor |
| 3. | Select lever | 13. | Gear shift solenoid valve No.1 | 23. | Brake light switch |
| 4. | Shift lock manual release button | 14. | Odd gear clutch solenoid valve | 24. | Paddle-up switch |
| 5. | P position switch | 15. | Gear shift solenoid valve No.2 | 25. | Paddle-down switch |
| 6. | Shift lock solenoid | 16. | Line pressure sensor | 26. | ST 3 relay |
| 7. | TCM | 17. | Even gear clutch pressure sensor | 27. | Back up light relay |
| 8. | Smart drive unit | 18. | Gear select position sensor | 28. | Starting control relay |
| 9. | Driver side front door switch | 19. | Gear select oil control valve: Located inside | ||
| 10. | Solenoid valve unit | 20. | Electric motor |
