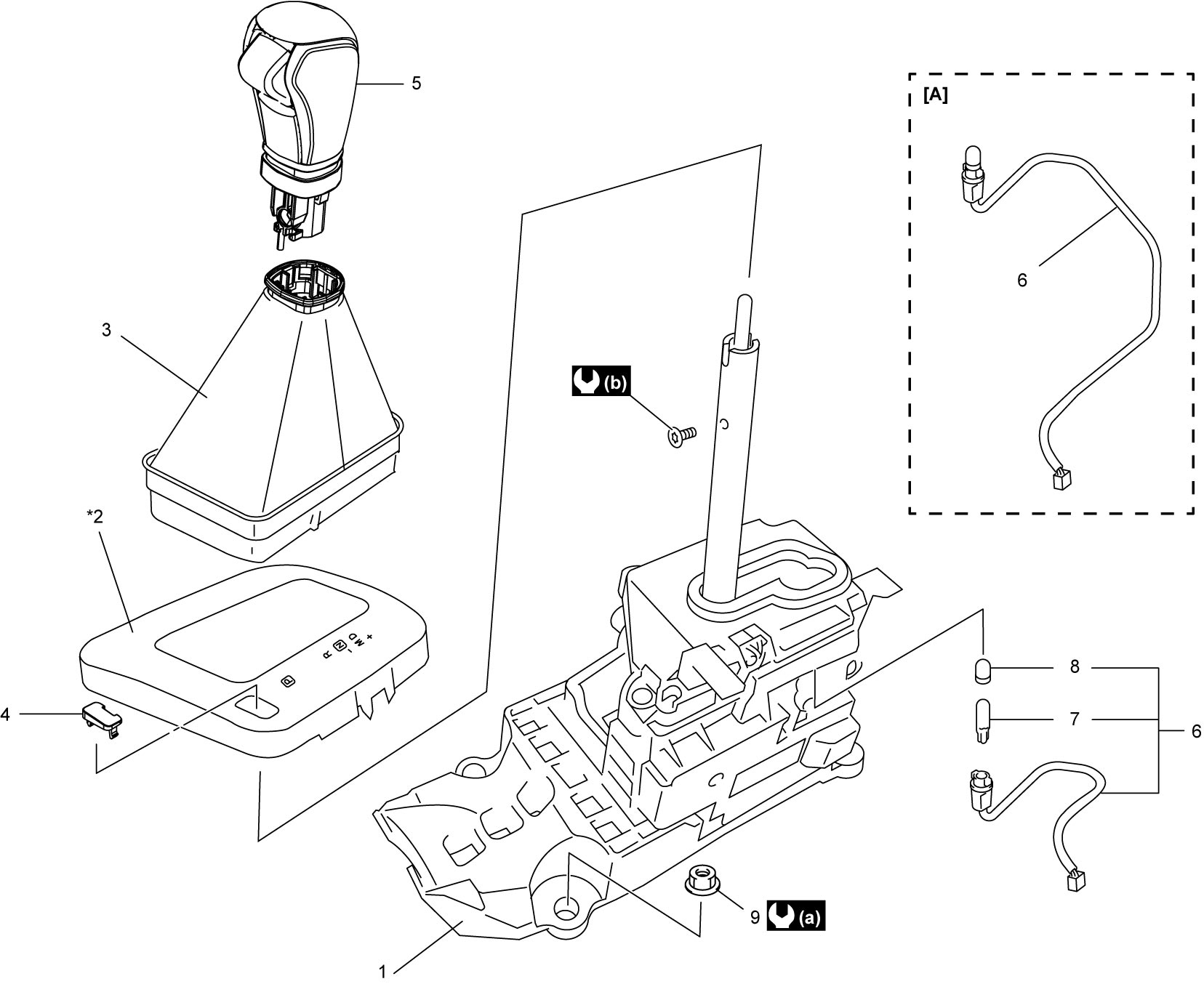

Select Lever Assembly Components
Precautions: Precautions for Diagnosing Trouble · Precautions for Disassembly and Reassembly · Precautions for Transmission / Transaxle · General safety (00)
NOTE:
The figure shows LHD. For RHD, shift indication on parts with (*) are installed at the opposite side.
| [A]: | RHD | 4. | Shift lock manual release cap (LHD model) | 8. | Bulb filter |
| 1. | Select lever assembly | 5. | Select lever knob | 9. | Select lever nut |
| 2. | Select lever indicator | 6. | Select lever illumination light assembly |
 : |
13 N·m (1.3 kgf-m, 9.5 lbf-ft) |
| 3. | Select lever boot | 7. | Bulb |
 : |
2.5 N·m (0.25 kgf-m, 2.0 lbf-ft) |
