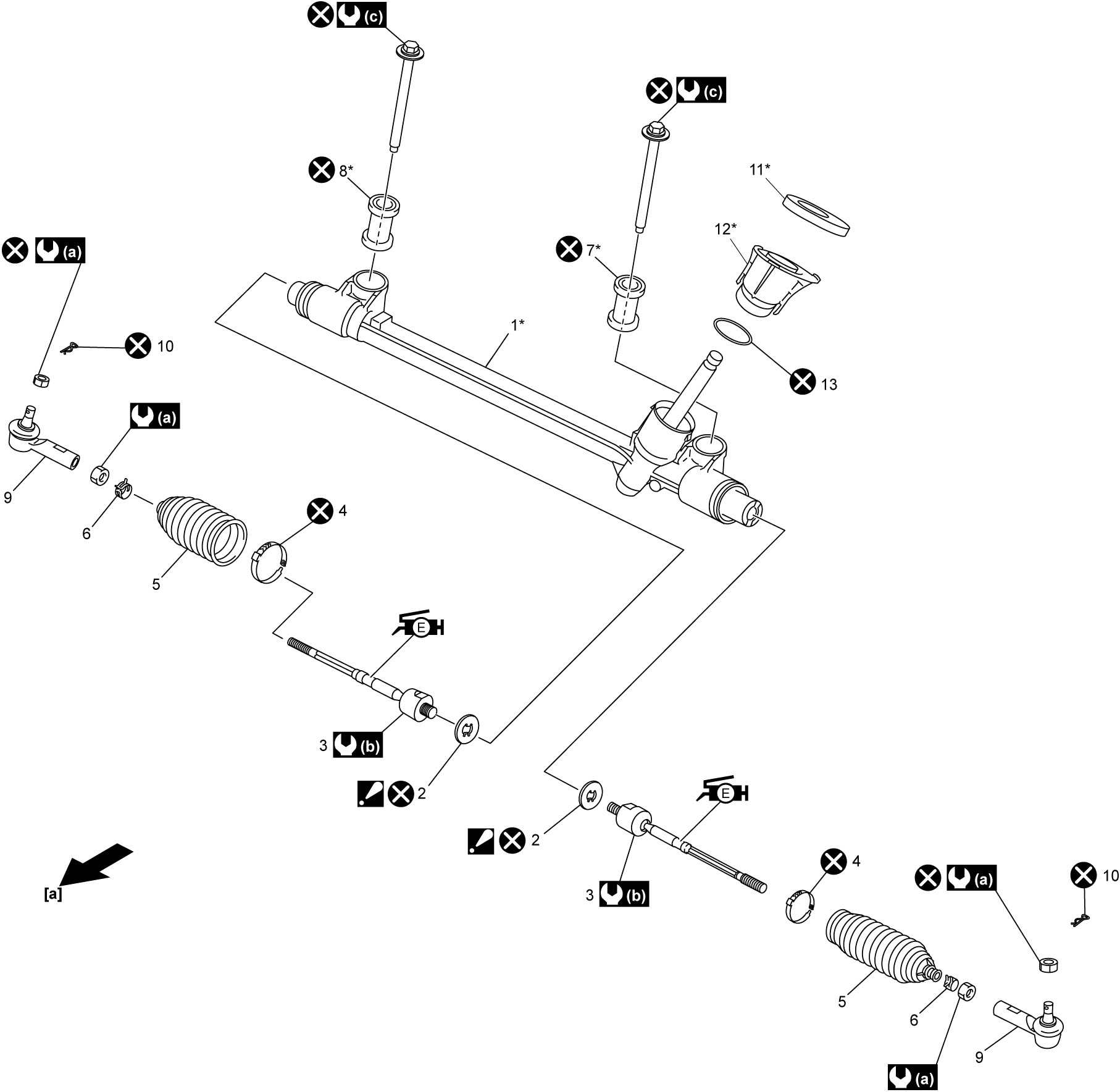

Steering Gear Case Assembly Components
Precautions: Precautions for Steering Wheel and Column · Precautions for Steering · General safety (00)
NOTE:
The figure shows LHD. For RHD, parts with (*) in the figure are opposite in left and right.
| [a]: | Forward | 7. | Steering gear case bushing (pinion side bushing) |
 : |
45 N·m (4.6 kgf-m, 33.5 lbf-ft) |
| 1. | Steering gear case | 8. | Steering gear case bushing (rack side bushing) |
 : |
88 N·m (9.0 kgf-m, 65.0 lbf-ft) |
 2. |
Tie-rod lock washer : For removing and installing procedure of tie-rod lock washer, refer to Tie-Rod / Rack Boot Removal and Installation. |
9. | Tie-rod end |
 : |
80 N·m (8.2 kgf-m, 59.0 lbf-ft) |
| 3. | Tie-rod |
10. |
Clip |
 : |
Apply grease 99000-25050 to groove of tie-rod, referring to Tie-Rod / Rack Boot Removal and Installation. |
| 4. | Band | 11. | Steering gear packing |
 : |
Do not reuse. |
| 5. | Boot | 12. | Steering gear cover | ||
| 6. | Rack boot clip | 13. | O-ring |
