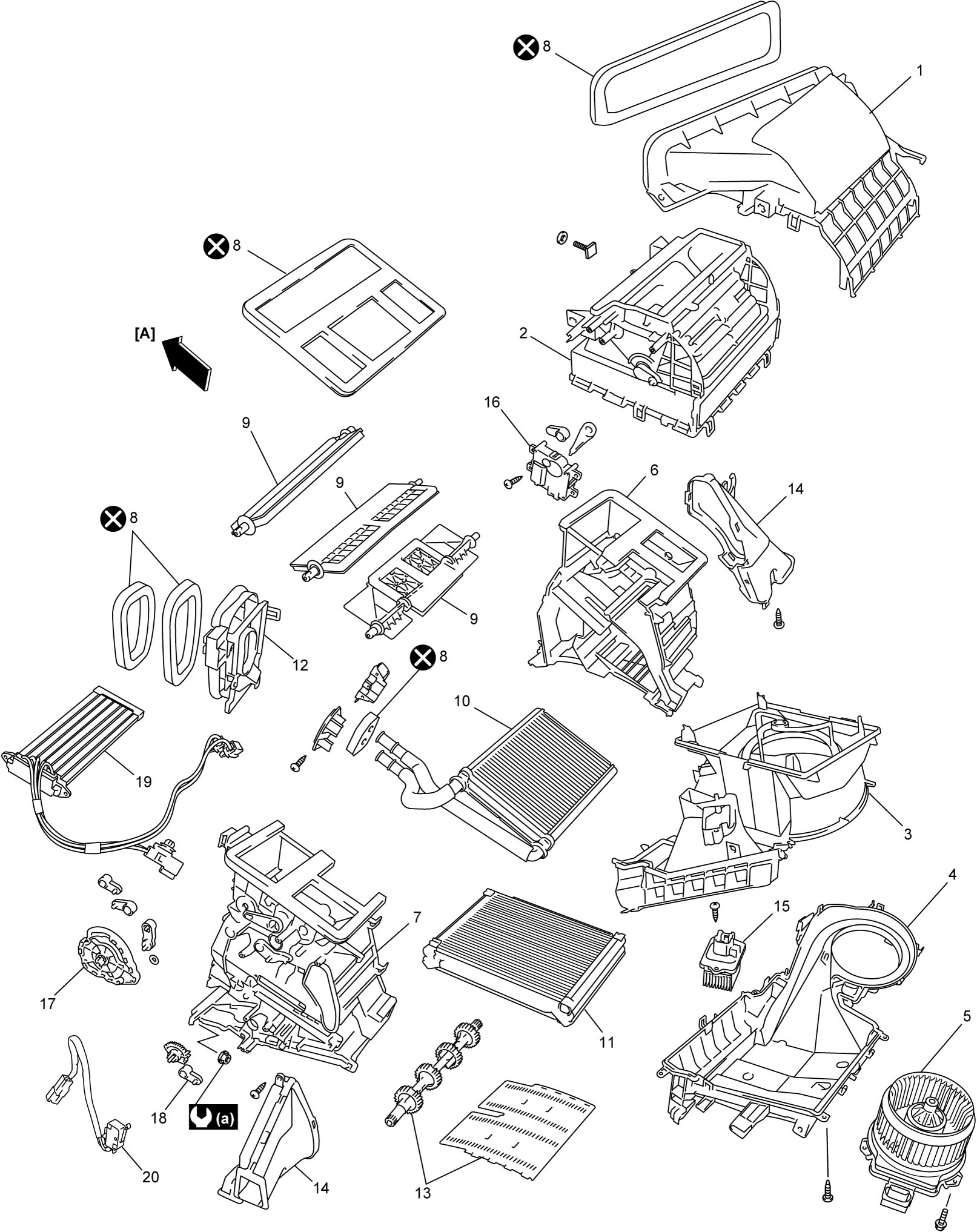

HVAC Unit Components
Precautions: General safety (00)
NOTE:
This figure shows LHD as an example.
| [A]: | Forward | 8. | Packing | 16. | Air intake control actuator |
| 1. | Fresh air inlet duct | 9. | Air flow control door assembly | 17. | Air flow control plate |
| 2. | Air intake case | 10. | Heater core | 18. | Temperature control lever |
| 3. | Blower upper case | 11. | Air resistance board | 19. | Additional heater (if equipped) |
| 4. | Blower lower case | 12. | Cover | 20. | Max hot switch (if equipped) |
| 5. | Blower motor | 13. | Temperature control door assembly |
 : |
6.0 N·m (0.61 kgf-m, 4.5 lbf-ft) |
| 6. | Right case | 14. | Foot duct |
 : |
Do not reuse. |
| 7. | Left case | 15. | Blower motor resistor |
