Blower Motor Removal and Installation

1)Disconnect negative (–) cable at battery.

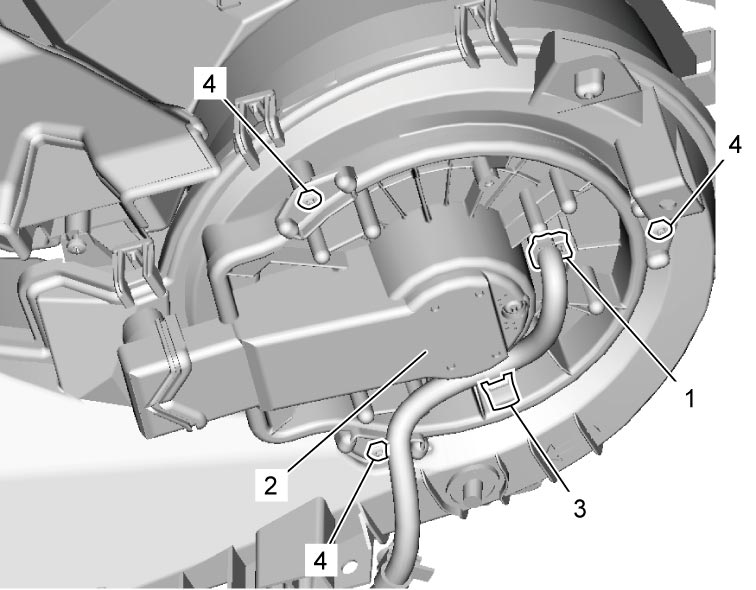

2)Remove passenger side instrument panel undercover (1).

3)Disconnect connector (1) and clamp (3) from blower motor (2).

4)Remove screws (4).

5)Remove blower motor from HVAC unit.
